Anti-slip concrete prefabricated floor pipeline hanger structure

(10) CN115183062

(22) 01.08.2022

(43) 14.10.2022

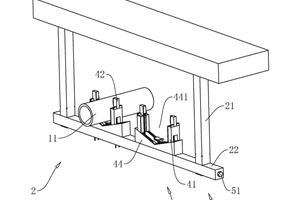

(57) The invention relates to an anti-slip concrete prefabricated floor pipeline hanger structure, and belongs to the field of building pipeline systems, the anti-slip concrete prefabricated floor pipeline hanger structure comprises a mounting frame, the mounting frame comprises a hanger rod and a supporting beam, one end of the hanger rod is fixedly connected with a floor, the other end of the hanger rod is connected with the supporting beam, and a pipeline is located on the side, facing the floor, of the supporting beam; a fixing mechanism is connected to the side, facing the pipeline, of the supporting beam and used for fixing the supporting beam and the pipeline, the fixing mechanism comprises a plurality of clamping blocks, the clamping blocks abut against the side wall of the pipeline and slide relative to the supporting beam, and the sliding direction is perpendicular to the axis of the pipeline. The fixing mechanism further comprises a control assembly used for controlling the clamping blocks to move. Displacement control is carried out on the clamping blocks through the control assembly, so that the clamping blocks clamp the pipeline above the supporting beam, and the mounting frame and the fixing mechanism have high operation efficiency during assembly

(71) Dongsheng Xingcheng Group Co. Ltd.
