Red cable- and pipe lead-through from Hauff-Technik

A reliable solution for concrete walls

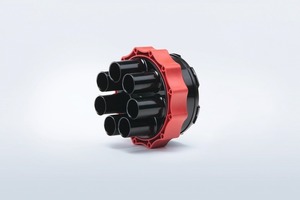

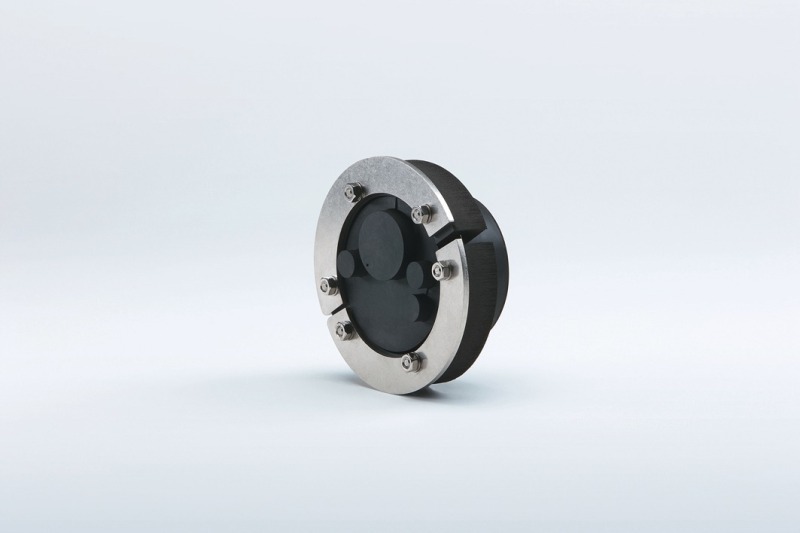

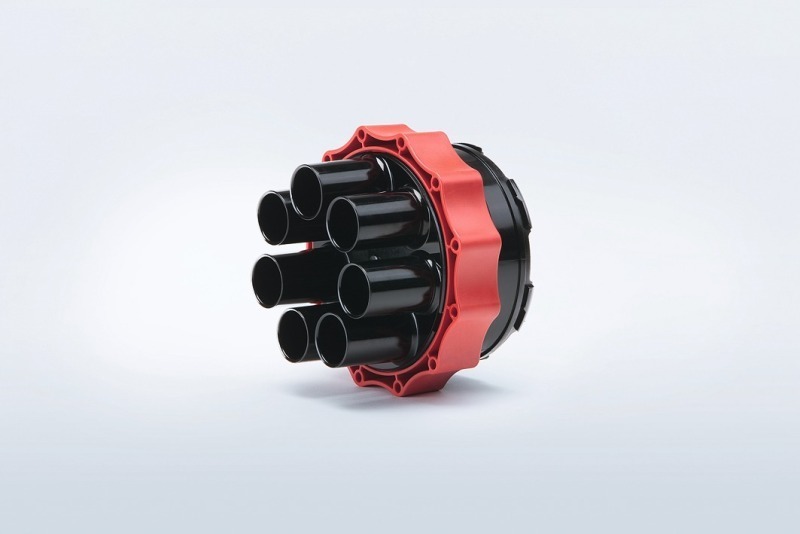

Fig. 1a The innovative HSI 150 cable and pipe sealing system with its system components.

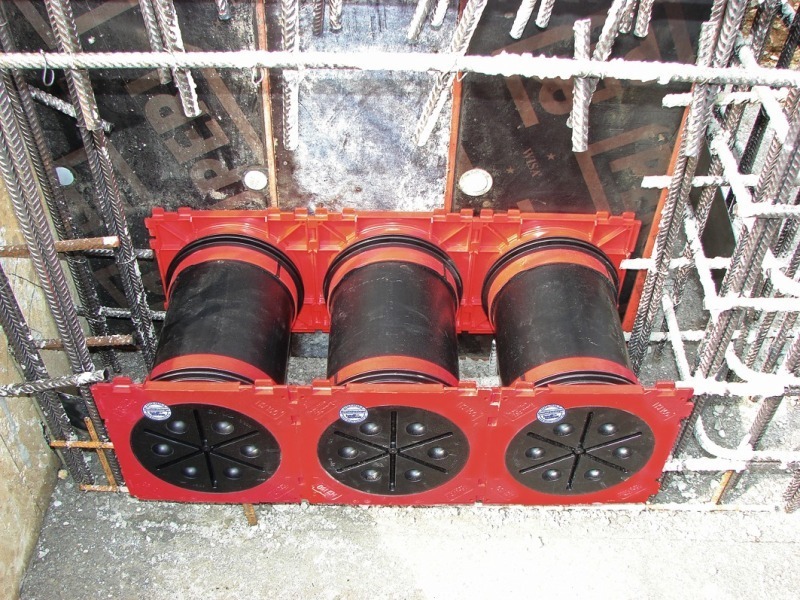

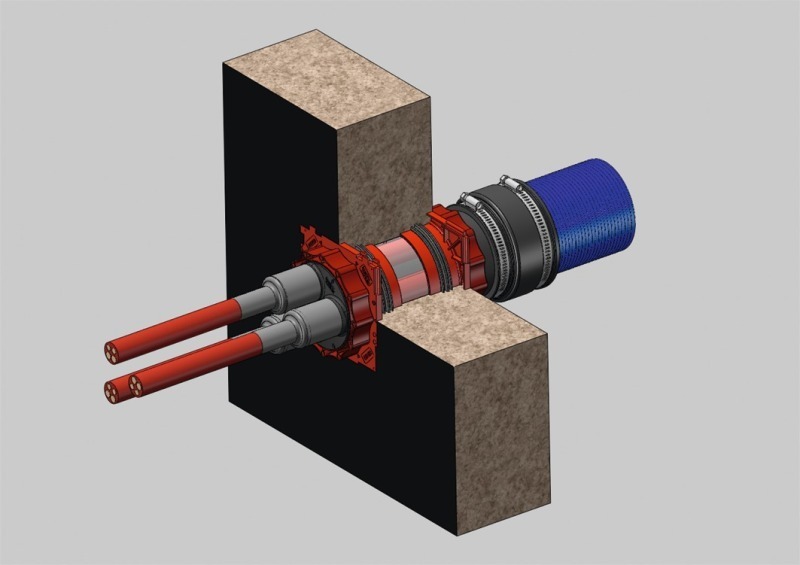

Fig. 1b HSI 150 installed in a concrete wall and with both-sided utilization of the system seals.

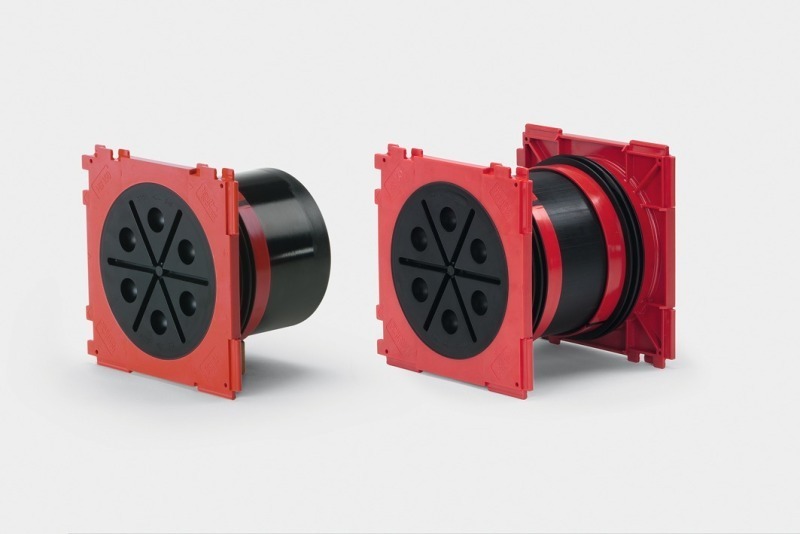

Fig. 2 Embedded component parts: Hauff HSI 150-K, single sealing kit (left) and Hauff HSI-K2, double sealing kit (right) [2].

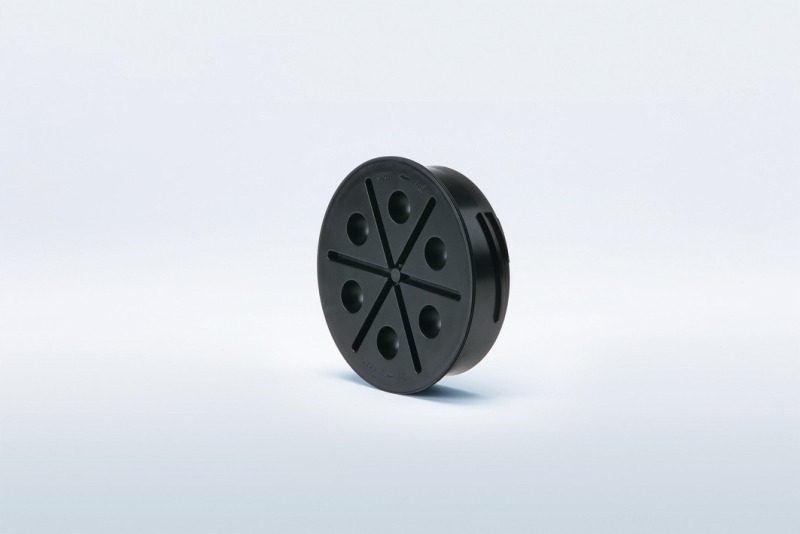

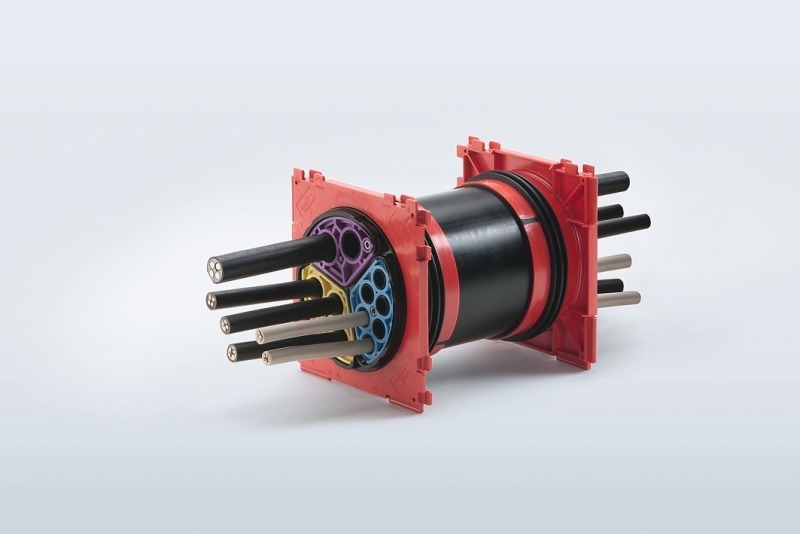

Fig. 3 Hauff HSI 150 sealing cover (top left) and three of six system covers [2].

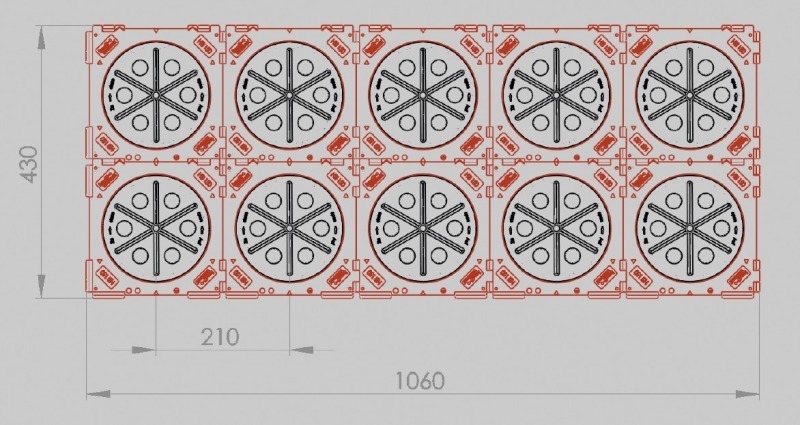

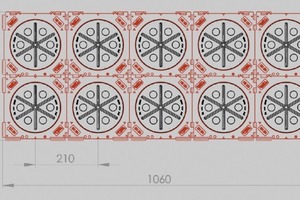

Fig. 4 Dimensions of an HSI 150 – cable lead-through assembly kit, comprised of 2 x 5 sealing kits: designation: HSI 150-2x5-K2/x.

Fig. 4 Tongue- and groove technique at the flange edges for
simple formation of a kit assembly of HSI 150 lead-throughs.

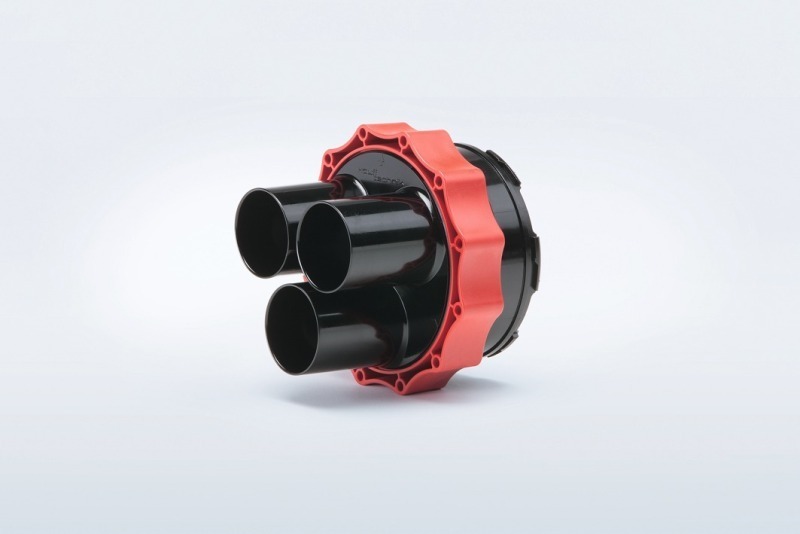

Fig. 5 Use of the Segmento system for up to 24 cables with a max. diameter of 15 mm each at a watertightness of up to 5-m water column.

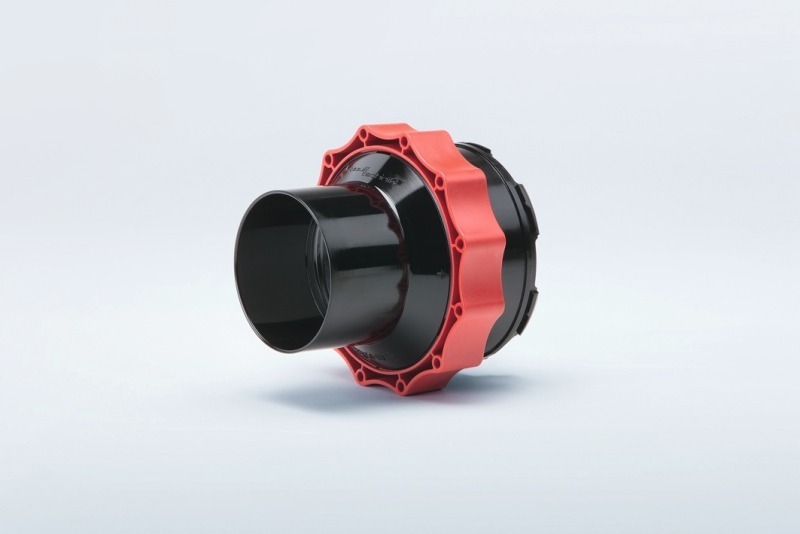

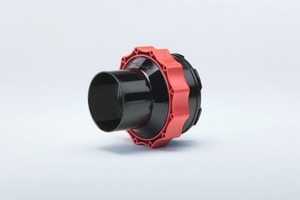

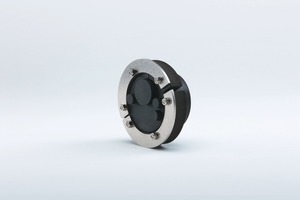

Fig. 6 Press seal inserts for HSI 150: exchange insert technique (WE), 110 mm.

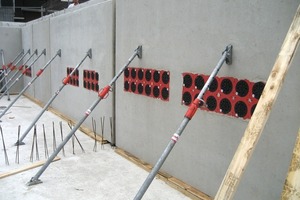

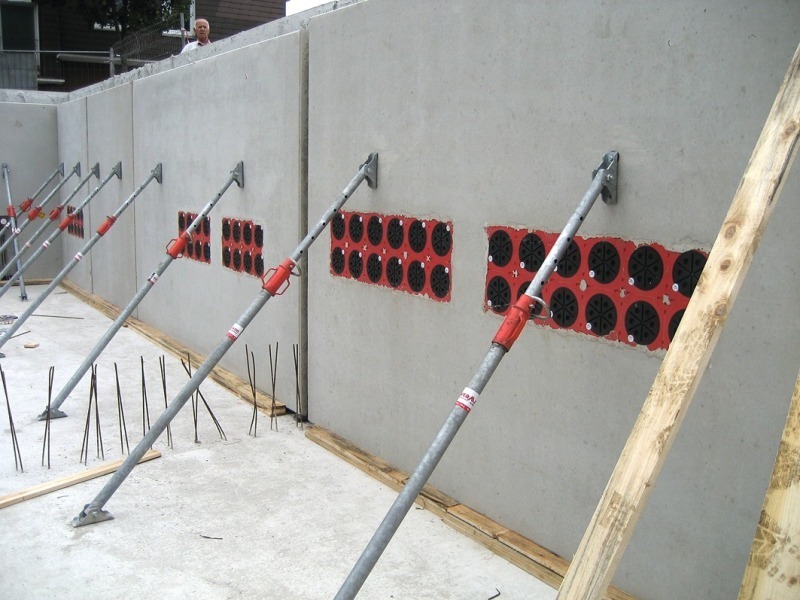

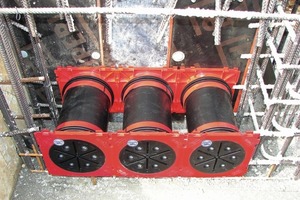

Fig. 7 Use of HSI 150 cable lead-throughs in precast walls.

Moisture or even water unleash destructive forces in buildings of all types. In buildings used for electric power supply, e.g. in substations, distribution stations or transformer stations, they can cause electric short circuits with devastating consequences. In buildings used for gas and water supply, they can lead to premature corrosion [1]. Utility cables and pipes are always led into buildings from the outside. This imposeshigher requirements on the necessary lead-throughs that must be conducted below ground level into basements.

The entry must be carried out carefully and designed to meet the local requirements. Putting blind trust in randomly executed lead-throughs will usually result in high follow-up costs. Watertight, tested lead-through systems must be used, if only because water tends to collect in cable and pipe routes. This design should also be installed in water-bearing cohesive soils, in buildings erected on steep slopes or in buildings in areas with higher groundwater level to prevent water ingress. The basements (walls and ground slabs) should be provided with a waterproof concrete lining or an external...
