Haba Beton in Großsteinberg near Leipzig

Yellow force ahead

Opener

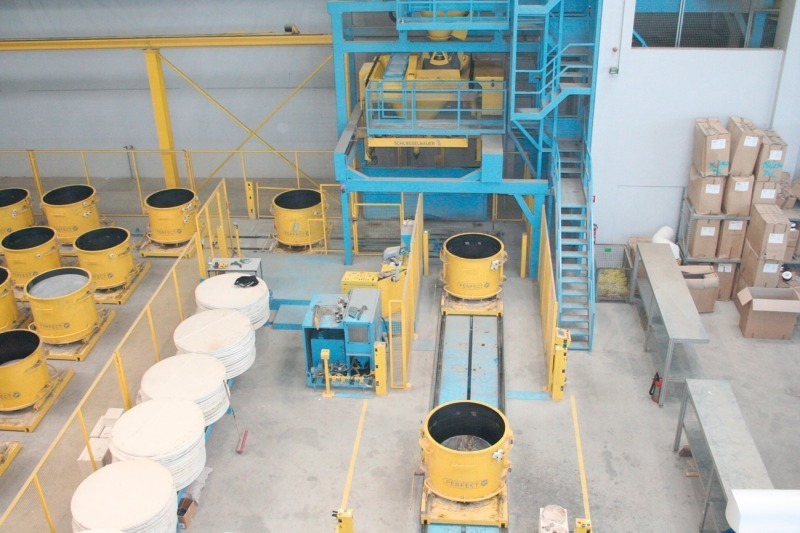

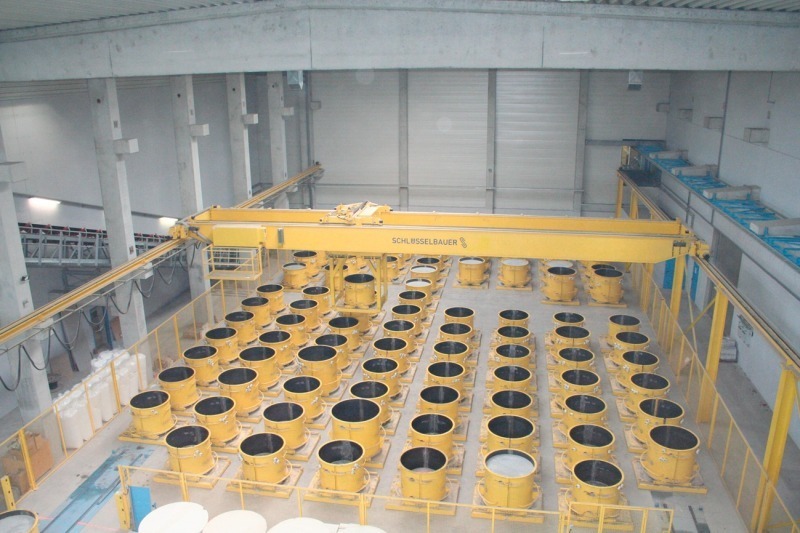

Fig. 1 The curing area and mold pool of the factory is suitable for the production of more than 100 manhole base section per shift.

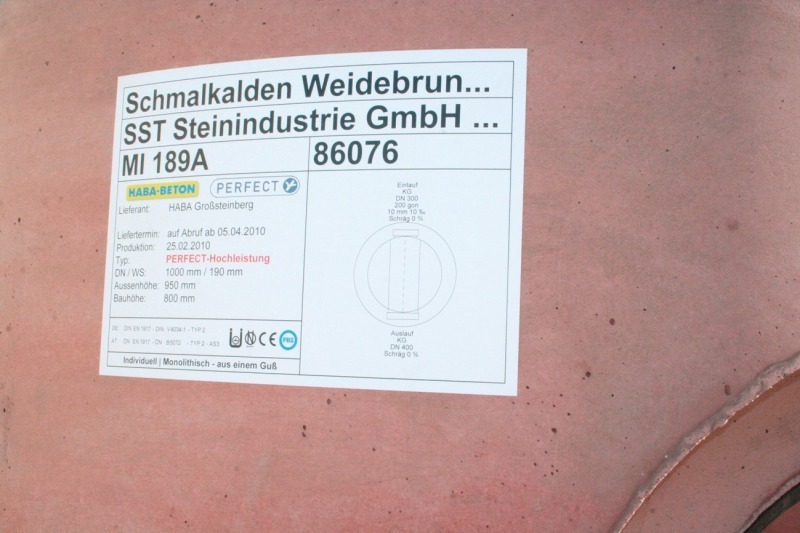

Fig. 2 An important factor for the production process in the
factory and the correct allocation at the construction site –
well-arranged product labelling.

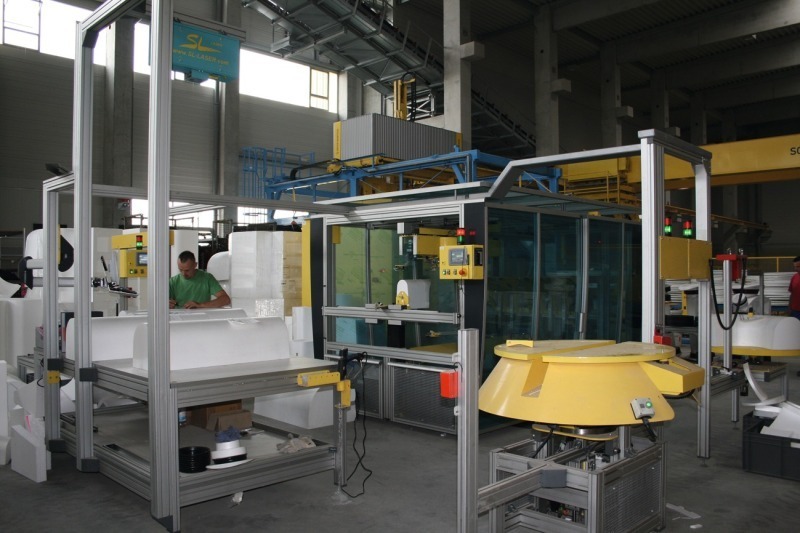

Fig. 3 The very core of the channel manufacturing line is a saw
for 3-D cuttings as they are required for hydraulically optimized connection of the inlets.

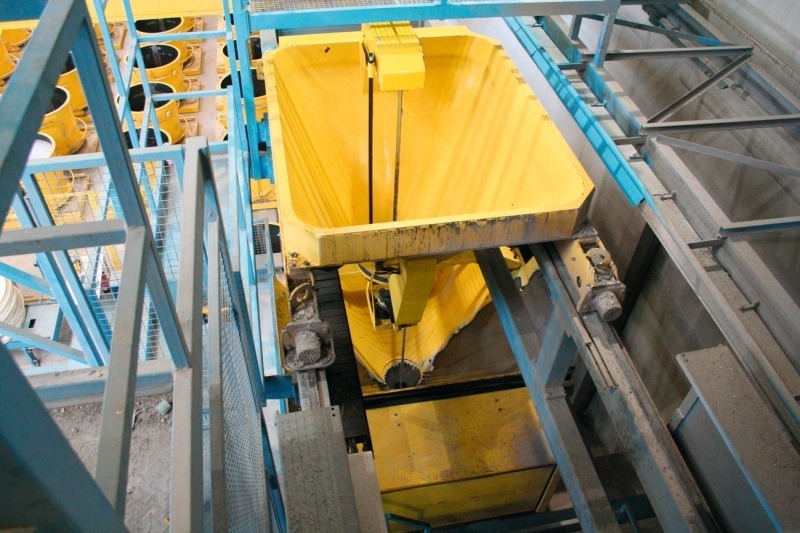

Fig. 4 Providing of concrete for continuously filling of the molds by means of two hoppers.

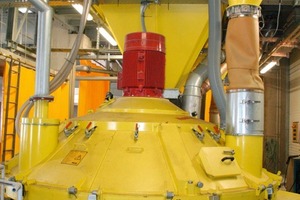

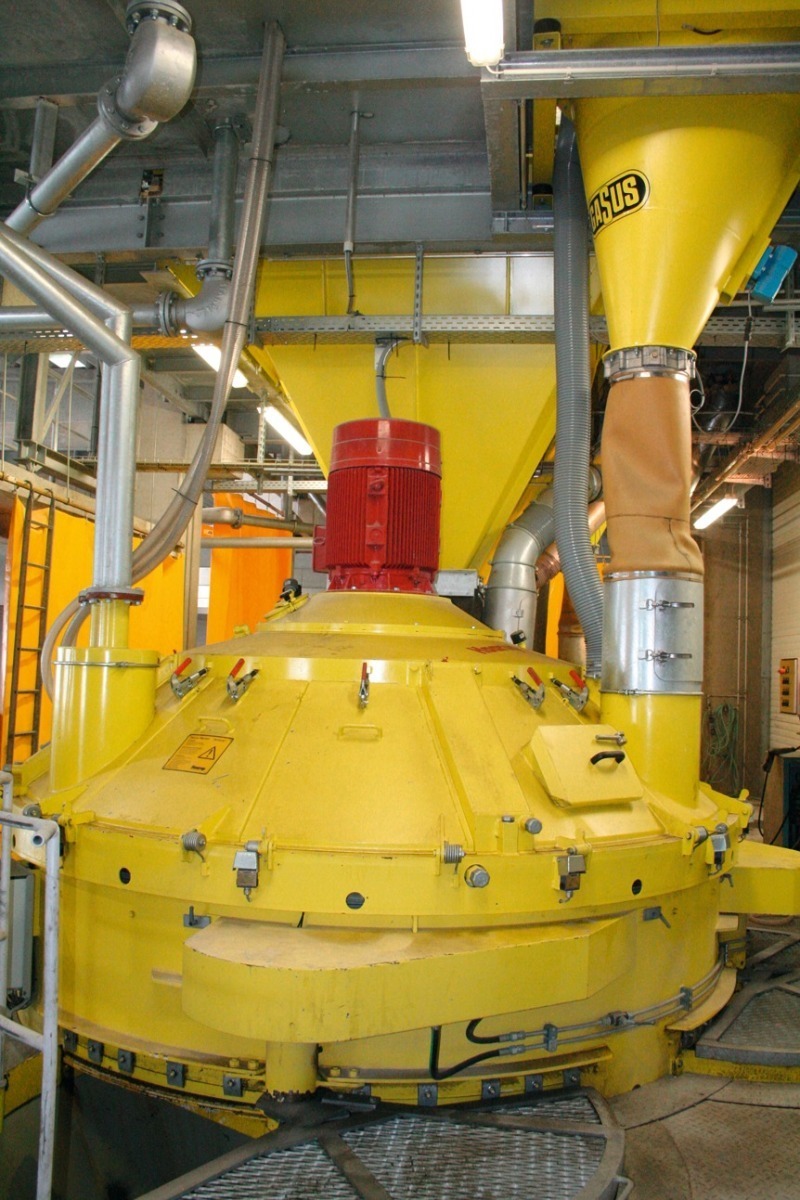

Fig. 5 Two mixers of Haarup with 2 m³ each supply the Perfect production line as well as the adjacent production hoppers.

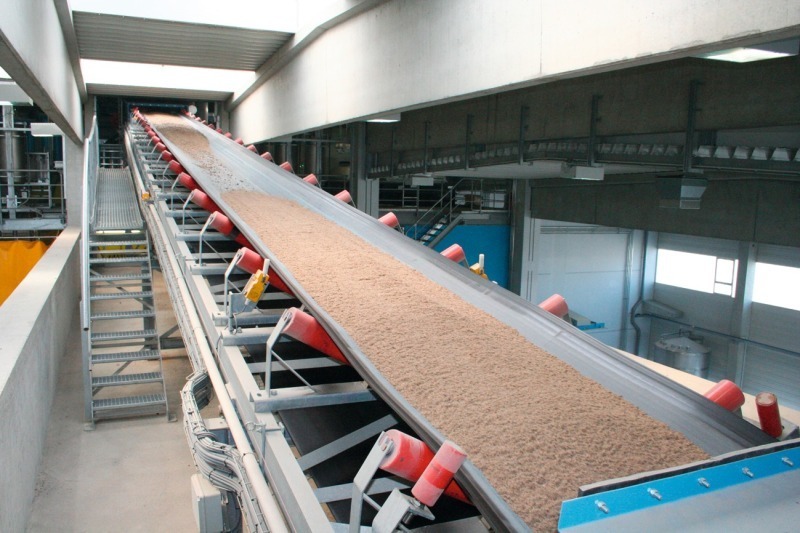

Fig. 6 The aggregates are carried to the mixing level via inclined belt conveyors.

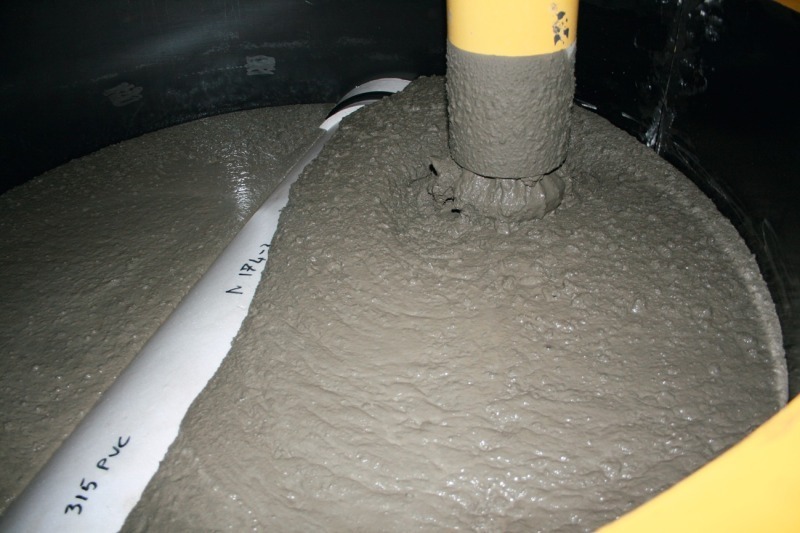

Fig. 7 The molds are filled with self-compacting concrete in a very short time.

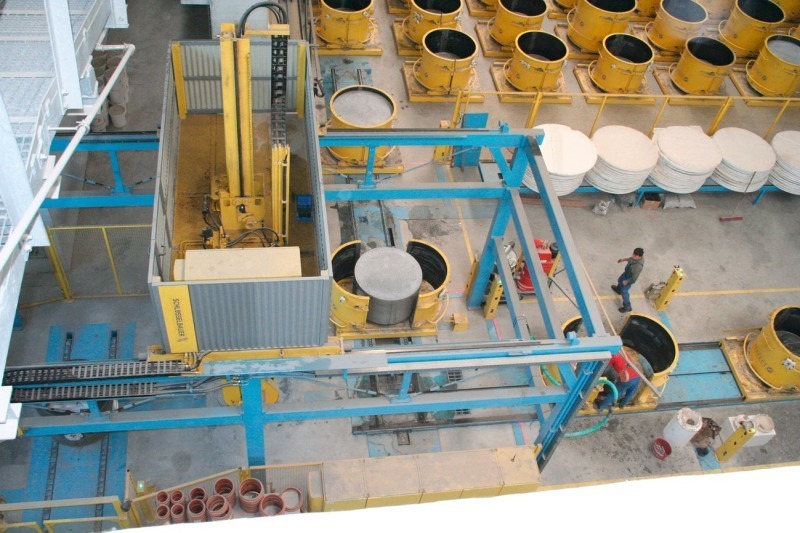

Fig. 8 After opening the mold, the manhole base sections are automatically removed and turned to their assembly position.

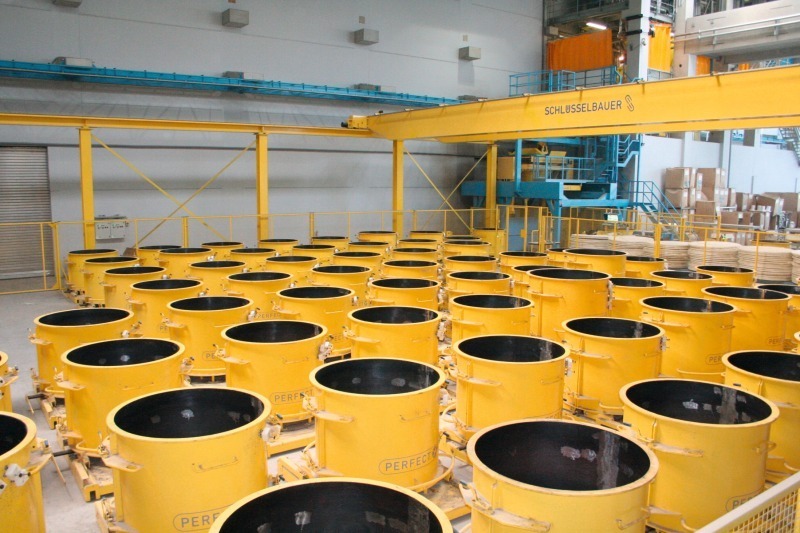

Fig. 9 Cycle of formwork process is the specific attribute of this plant.

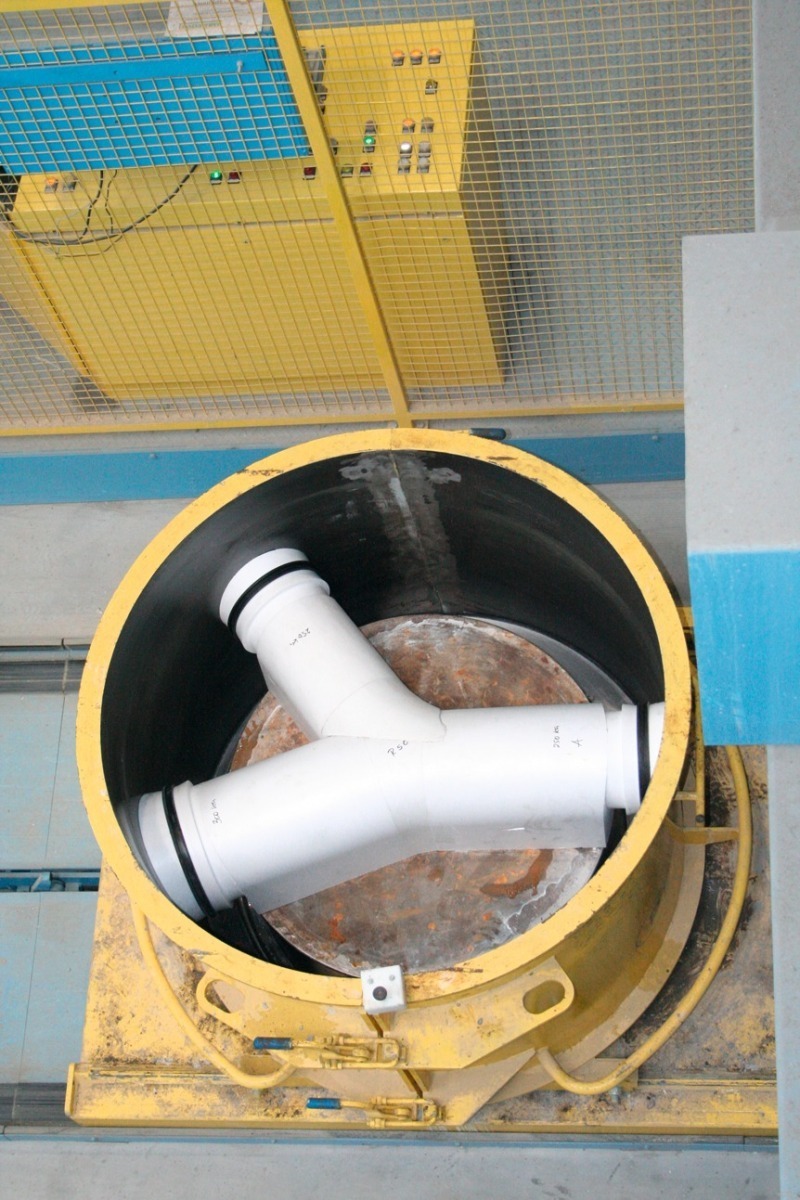

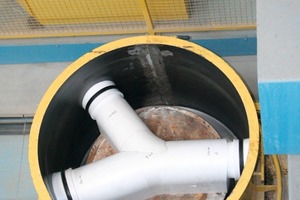

Fig. 11 A mold furnished with an EPS negativ channel form moving towards the concreting station.

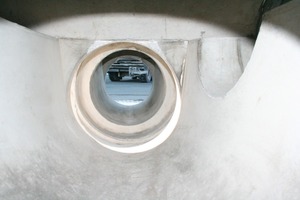

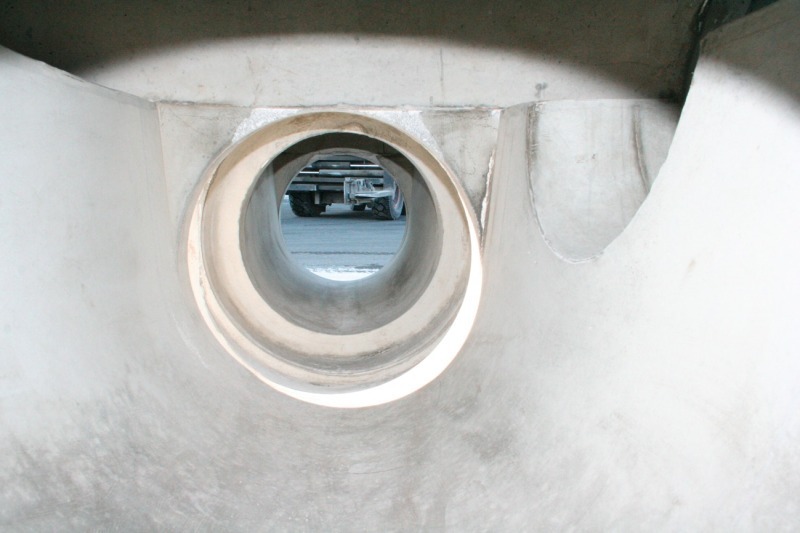

Fig. 10 Remarkable “insight” in individually manufactured
concrete manhole base sections.

The foundations for the precast concrete production of Haba-Beton Johann Bartlechner KG in the Saxon town of Großsteinberg were laid in 1993. The production facility has continuously been expanded and further developed since then. For about half a year, it is now possible to manufacture individual concrete manhole base sections by means of the Perfect System of Schlüsselbauer.

The product range manufactured at this premises includes pipes (round and egg-shaped pipes), manhole components, jacking pipes, cones, custom-made com-
ponents (e.g. elbows, foot rest rings, cover slabs), small sewage plants, storage reservoirs or even drainage shafts.

The first factory building installed here in the course of establishing this production site is almost three hundred meters long and accommodates various manufacturing stations for pipes, cones, and manhole components. In the adjacent second building are also several stations of various suppliers available for the manufacturing...
