Methods and apparatuses for constructing a concrete structure
(10) US 2021/0381220 Al
(22) 23.04.2021
(43) 09.12.2021

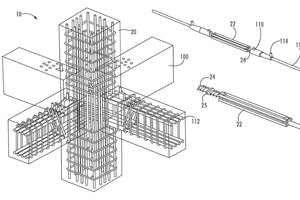

(57) Various implementations include methods and apparatuses for constructing a concrete structure. In one implementation, a structure includes a pre-cast concrete column section and a pre-cast concrete beam section. The column section includes an embedded first assembly with a threaded rod, and the beam section includes an embedded second assembly defining a channel for receiving the threaded rod. Grout is fed through a joint between the column and beam sections into the second assembly to couple the threaded rod with the second assembly. The grout is urged through the joint and the second assembly by gravity and by applying vacuum suction to a grout port defined by the second assembly. The grout port extends between the channel of the second assembly and an external face of the beam section.
(71) Tindall Corporation, Spartanburg, SC (US)
