Halfen

New slab connection with ETA

Figure: Halfen

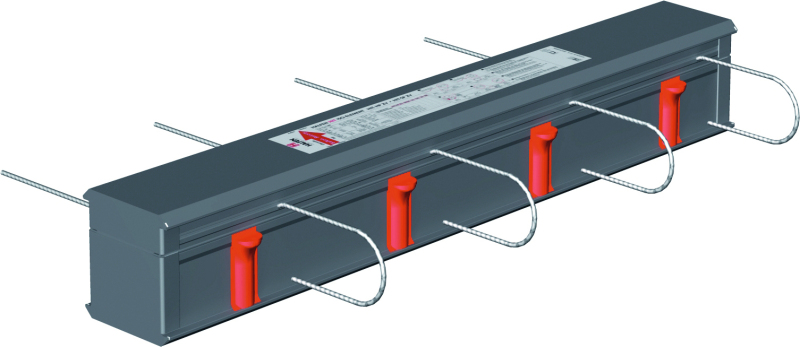

The combination of shear bars and compression shear bearings allows for an optimum utilization of all bearing members

Figure: Halfen

Figure: Halfen

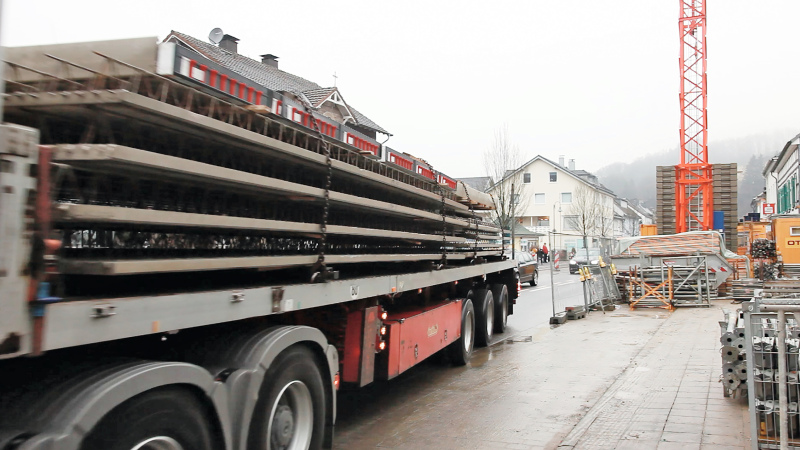

Due to the compact design of the compression shear bearing box, there are no protruding bearing members impeding transport and storage of the precast concrete elements

Figure: Halfen

Figure: Halfen

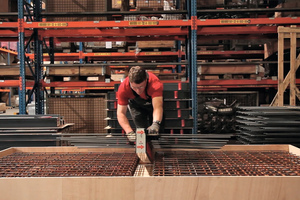

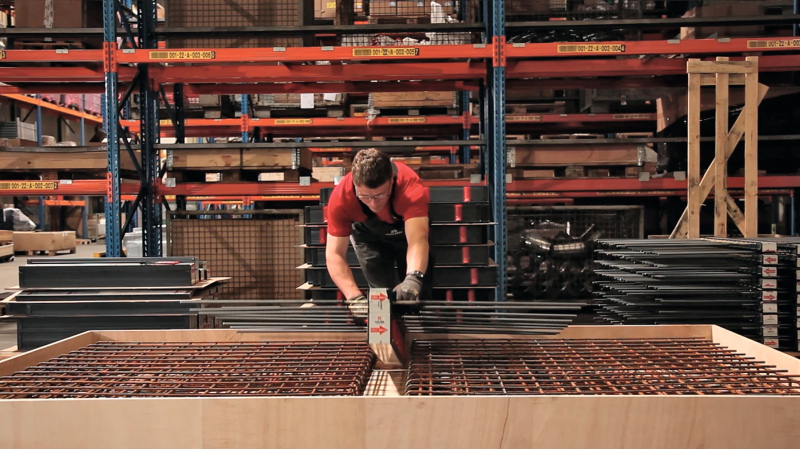

An easy installation is also possible from above, after inserting all reinforcement elements of the floor and balcony slab

Figure: Halfen

Slab connection elements are structural heat-insulating elements providing for the thermal separation of reinforced concrete components. In practice they are used to prevent mold growth, to ensure increased structural physical requirements and to avoid cracking caused by temperature strains. These systems usually consist of an insulating layer and the structural framework, which is made of steel tension bars and steel shear bars as well as compression bearings made of concrete or steel.

Higher planning reliability due to ETA

For the Halfen Iso-Element HIT-HP/HIT-SP the statically effective...
