Roland Wolf

Wolfwand: Modern construc­tion in a gap

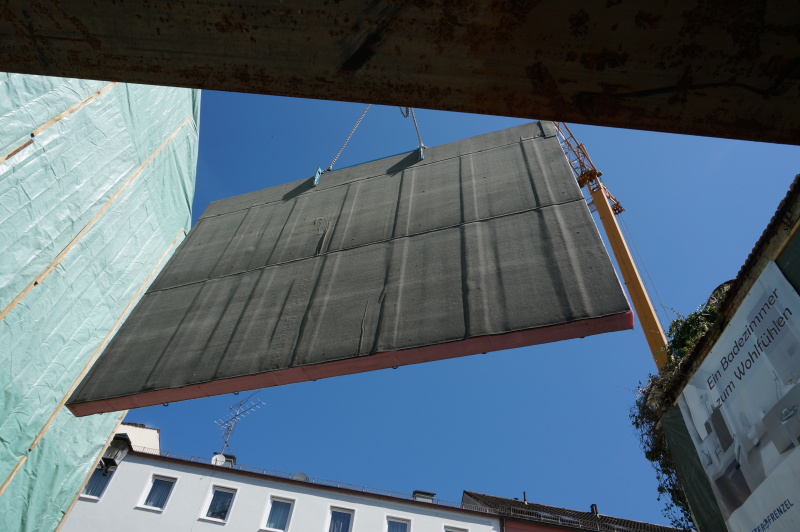

The Wolfwand wall system qualifies above all for all kinds of gap filling in downtown areas Figure: Roland Wolf
The Wolfwand wall system qualifies above all for all kinds of gap filling in downtown areas
Figure: Roland Wolf

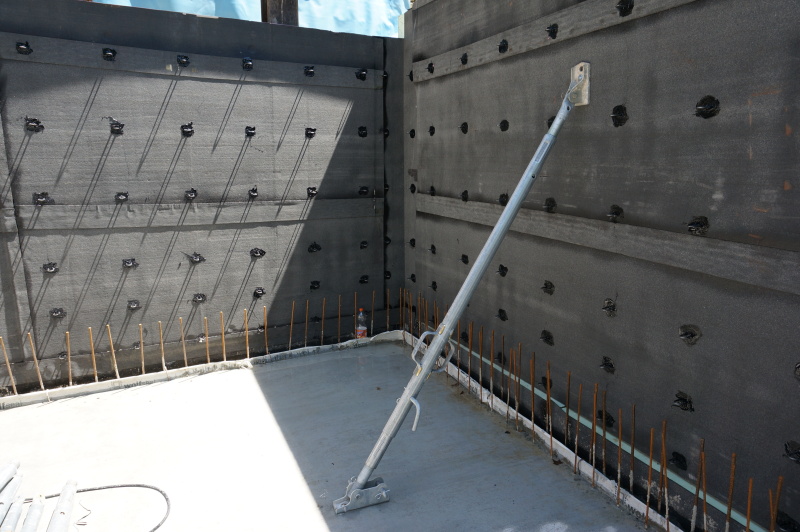

For stabilization purposes, the multifunction shells are secured to the ground slab Figure: Roland Wolf
For stabilization purposes, the multifunction shells are secured to the ground slab
Figure: Roland Wolf

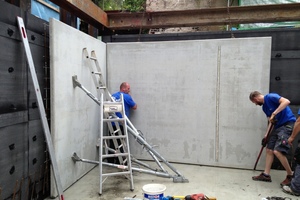

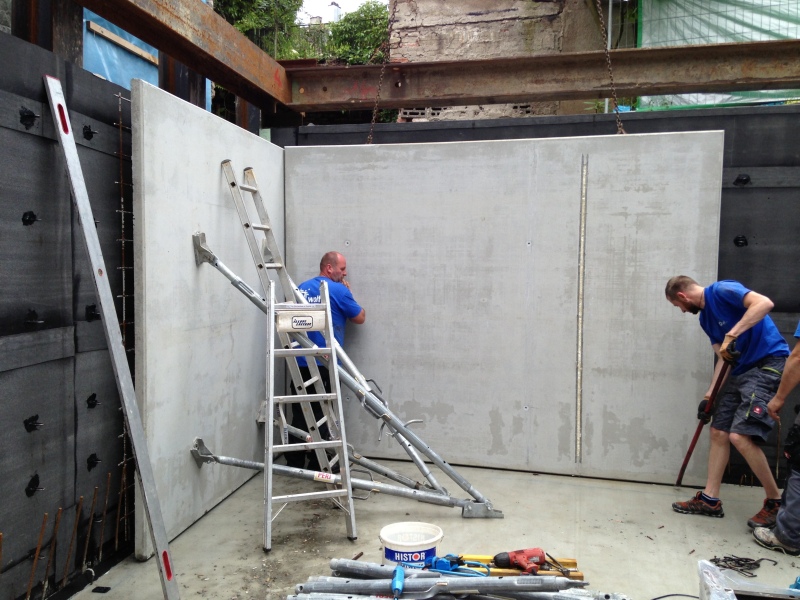

The inner shell is directly fitted to the external wall and safeguarded to the ground slab Figure: Roland Wolf
The inner shell is directly fitted to the external wall and safeguarded to the ground slab
Figure: Roland Wolf

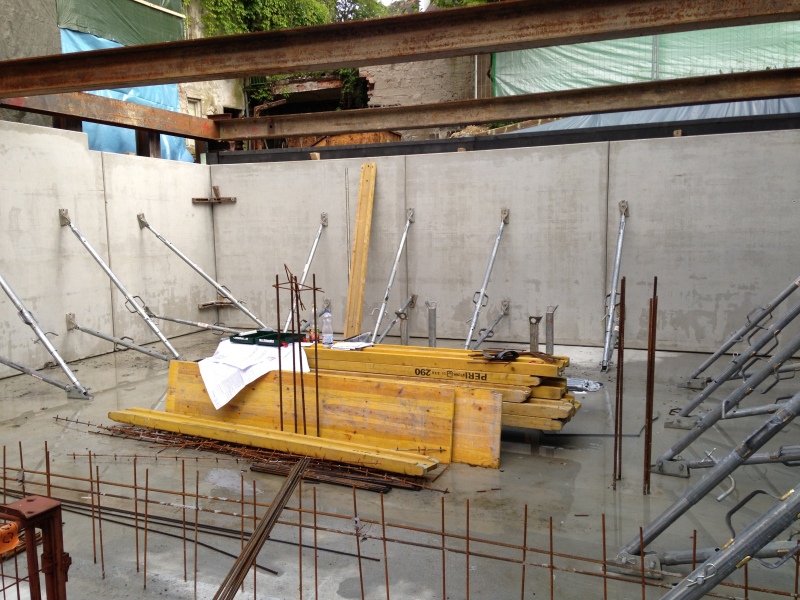

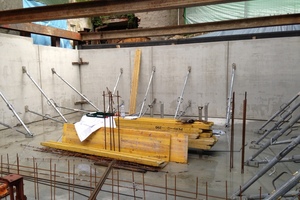

Outer and inner shells are erected, connected with each other and prepared for concrete placement Figure: Roland Wolf
Outer and inner shells are erected, connected with each other and prepared for concrete placement
Figure: Roland Wolf

The Wolfwand wall system consists of two multifunction shells which are connected by means of a patented connection system right at the construction site. Afterwards cast-in-situ concrete is filled in the hollow space between the two shells. The patented connection system combined with the existing reinforcement ensures concreting at floor-to-floor height without the risk of any recess at the outer shell.

Using the Wolfwand wall system, it is possible to erect a building absolutely indepen-dent of any sheeting and not requiring any working space in a weather-independent way and impermeable to...

Find out more in

BFT 09/2013

Find out more in

BFT 09/2013
