Concrete form systems, devices, and related methods

(10) WO2023245102A1

(22) 15.06.2023; (43) 21.12.2023

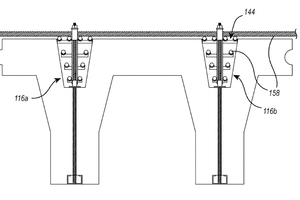

(57) A concrete form system includes a concrete form and a rebar tree. The concrete form includes at least one support column disposed at a lower portion of the concrete form and first and second connection branches disposed at an upper portion or the concrete form. The first and second connection branches are configured to be connected to second and first connection branches, respectively, of another concrete form. The first and second connection branches at least partially form one or more channels therebetween. The rebar tree includes a rebar mounting assembly configured to hold one or more pieces of rebar in one or more desired positions. The rebar mounting assembly is configured to be disposed within at least one of the one or more channels at least partially formed by the first and second connection branches.

(71) ICF Building Systems LLC

x

Related articles:

Issue 08/2023

Form bracket for concrete panel form

(10) US2023151622A1 (22) 06.01.2023 (43) 18.05.2023 (57) A form bracket for supporting a wall of a concrete panel form at a cas-ting slab includes a first planar member having a lower surface...

more
Issue 09/2022

Rebar positioning apparatus

(10) CA 3101913A1 (22) 08.12.2020 (45) 07.06.2022 (57) A rebar positioning apparatus configured to retain a piece of rebar and allow incremental vertical movement thereof in an upwards direction...

more
Issue 04/2015

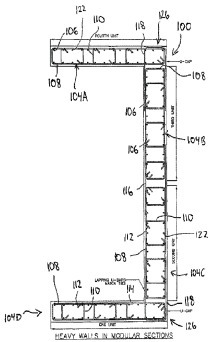

Prefabricated modular rebar modules and methods of using the same
