A reinforcement structure for forming a triangular concrete floor or ceiling slab

(10) EP4497888A1

(22) 24.07.2024

(43) 29.01.2025

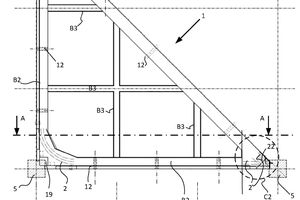

(57) A reinforcement structure (1) for forming a concrete slab (10) having a triangular circumferential beam (B2) and a plurality of central ribs (B3). Each of the central ribs (B3) are attached between two sides of the three sides of the triangular circumferential beam (B2). The structure (1) also includes a plurality of reinforcing bars (2) included in the triangular circumferential beam (B2). Each of the reinforcing bars (2) are tensionally attached between two corners of the triangular circumferential beam (B2).

(71) Shemesh, Ilan, IL
