Improved machine for forming concrete
reinforcing elements
reinforcing elements
(11) EP 2 425 908 A1
(22) 05.11.2009
(43) 07.03.2012
(71) Applicant: Fuertes Rodríguez, Manuel 28803 - Alcalá de He-nares (Madrid) (ES)

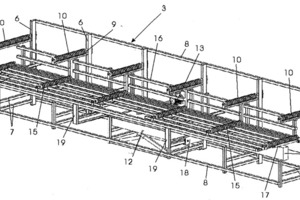

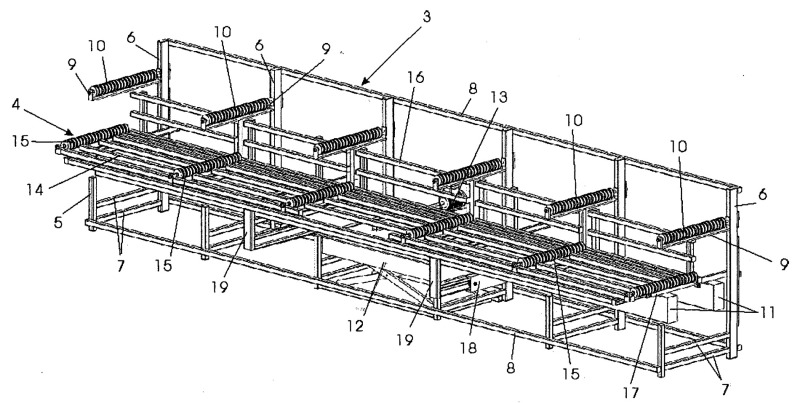

(57) A PERFECTED MACHINE FOR FORMING CONCRETE REINFORCEMENTS, consisting of an assembly table (1) and a dispensing table (2) arranged longitudinally and adjacently. The assembly table (1) is composed of a fixed support frame (3) that has protruding arms (9) equipped with sheaves (10) and of a tray (4) with elevating and translational movement, both forward and back, formed by slats (14) that have transversal rollers with sheaves (15) and the means for fastening...
