Prefabricated concrete component forming die and process
(10) CN117754700
(22) 24.01.2024
(43) 26.03.2024

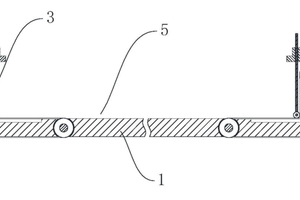

(57) The concrete prefabricated part forming mold comprises a bottom plate, limiting mechanisms are arranged on the two sides of the bottom plate, and a forming space is formed between the two limiting mechanisms; each limiting mechanism comprises a side check block, the side check blocks are connected with the bottom plate in a sliding mode, and the distance between the side check blocks of the two limiting mechanisms can be adjusted. The guide belt is of an annular structure and is rotationally supported through the guide roller assembly; the guide belt penetrates through the first through groove and the second through groove and surrounds the side check block, the bottom plate between the first through groove and the second through groove. The guide belt comprises a horizontal section and a vertical section, the horizontal section and the vertical section are both located on one side of the two side check blocks, the horizontal section horizontally covers part of the bottom plate, the vertical section vertically covers part of the sides, facing the forming space, of the side check blocks, the horizontal section and the vertical section are perpendicular to each other, and a corner part is formed at the joint of the horizontal section and the vertical section. The size of the concrete prefabricated component can be conveniently adjusted, and the production efficiency and quality of the component are improved.
(71) Shaoxing Baocheng Building Industrialization Manufacturing Co., Ltd.
