A process for manufacturing prefabricated ­concrete insulated panels and panel obstained thereby

(11) EP 3 192 632 A1

(22) 04.01.2017

(43) 19.07.2017 Bulletin 2017/29

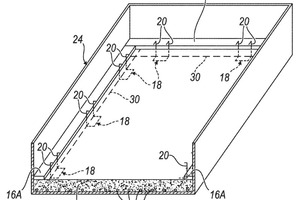

(57) A process for manufacturing prefabricated infill panels of the „thermal break“ type for the building industry in a formwork (24), comprising a step of forming a borne layer (10) by way of casting concrete in the formwork provided with a reinforcement (28) on the bottom, laying thermal insulating strips (16A) above the casting and against its respective wall of the formwork (24), arranging connection means (18) partially buried and partially projecting from the borne layer (10) for anchoring to a bear­ing layer (12), positioning thermal insulating slabs (16B) to cover an upper surface of the borne layer (10), arrang­ing lightening blocks (15), if any, casting concrete for ob­taining the bearing layer (12) provided with a respective reinforcement net and irons, vibrating the concrete and, finally, taking the panel out of the formwork (24).

(71) Logica Pannelli S.r.l. 26041 Casalmaggiore (CR) (IT)

(84) Designated Contracting States:AL AT BE BG CH CY CZ DE DK EE ES Fl FR GB GR HR HU IE IS IT LI LT LU LV MC MK MT NL NO PL PT RO RS SE SI SK SM TR

Designated Extension States: BA ME

Designated Validation States: MA MD

x

Related articles:

Issue 08/2019

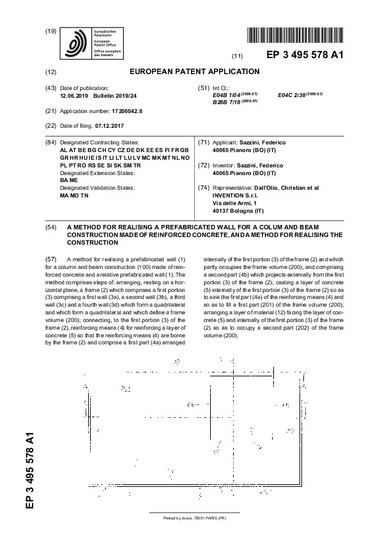

Method for realizing a prefabricated wall for a colum and beam construction made of reinforded concrete ...
