C-S-H: A state-of-the-art concept to accelerate concrete hardening; Part I

Photo: BASF

Economic and ecological optimization:
New options arise from concrete hardening accelerators like X-Seed

Photo: BASF

Photos (2): BASF

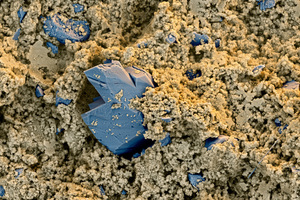

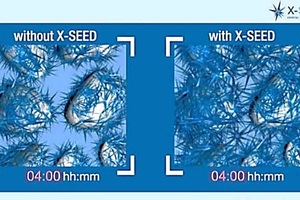

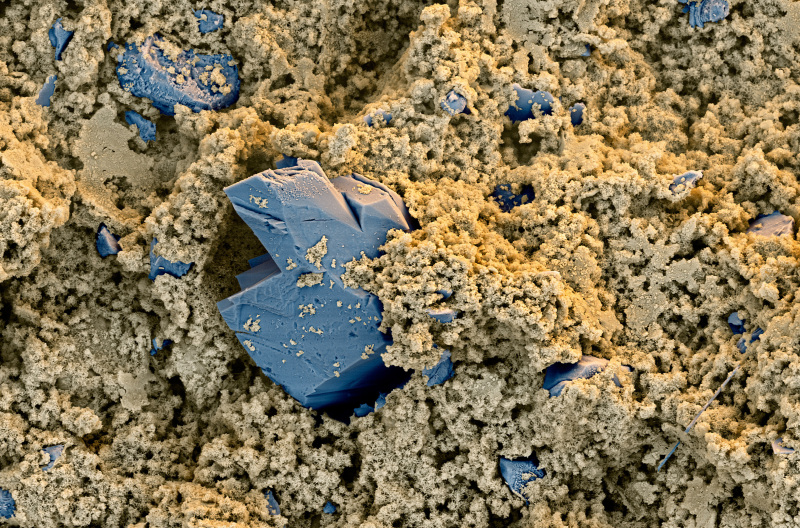

The addition of synthetic C-S-H phases accelerates hydration by crystal growth also in the pore solution

Photos (2): BASF

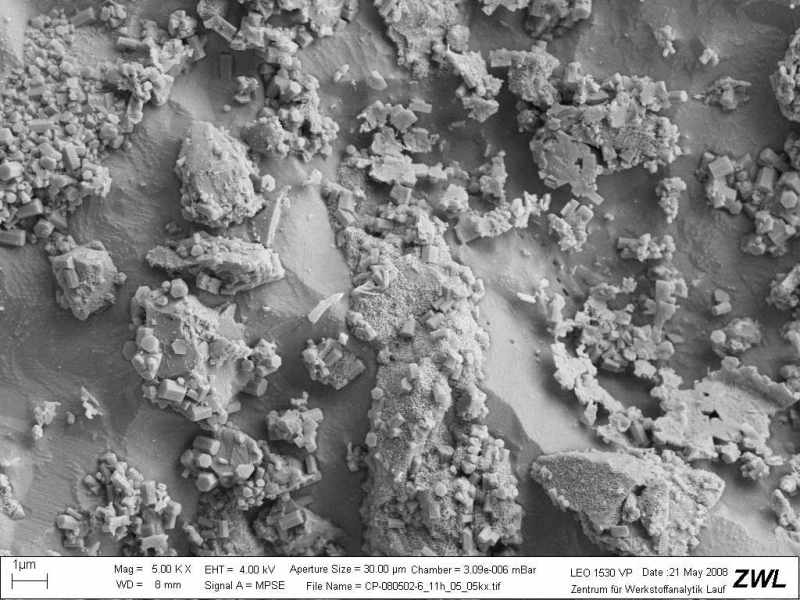

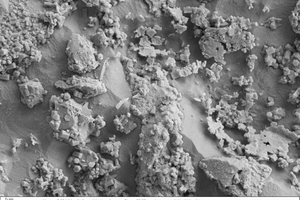

Progress of C-S-H phase formation with and without hardening accelerator. Reference: without accelerator after eleven hours ...

Photos (2): BASF

Photo: BASF

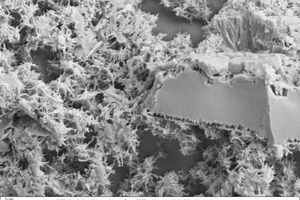

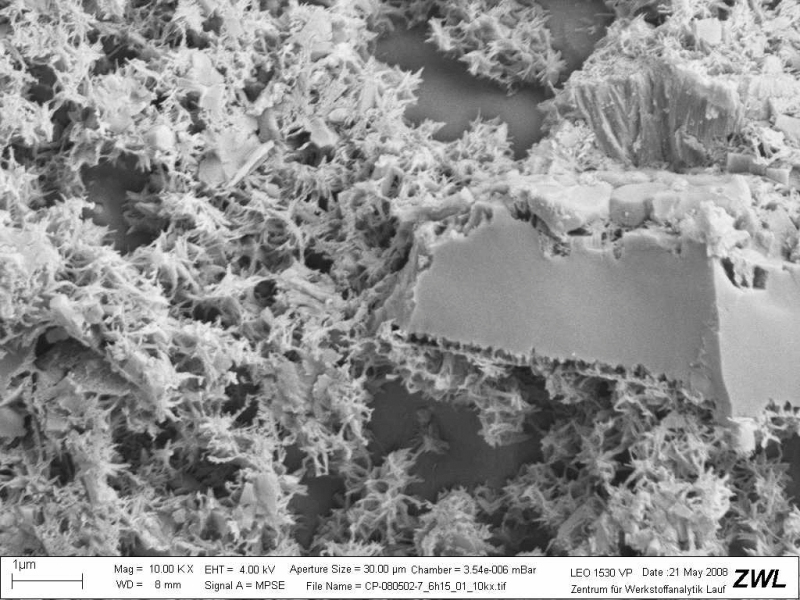

... sample with X-SEED hardening accelerator after six hours

Photo: BASF

Photos (2): BASF

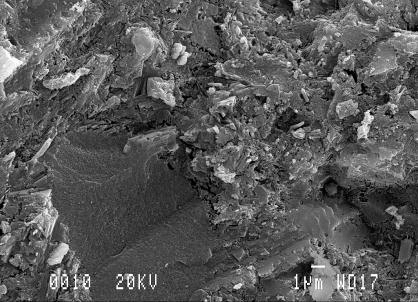

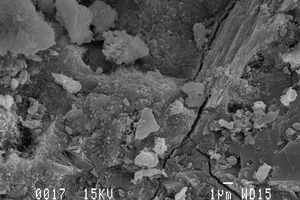

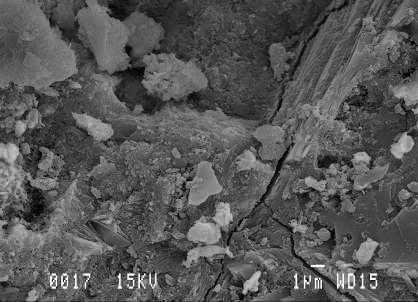

SEM images of the cement paste recorded after 28 days show comparable structures with and without X-SEED hardening accelerator. Reference: without accelerator (left);

Photos (2): BASF

Photo: BASF

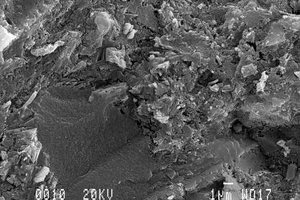

Sample with X-SEED hardening accelerator (right)

Photo: BASF

Photos (3): BASF

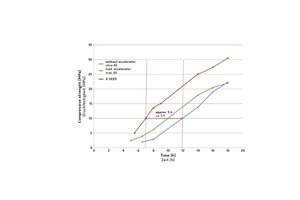

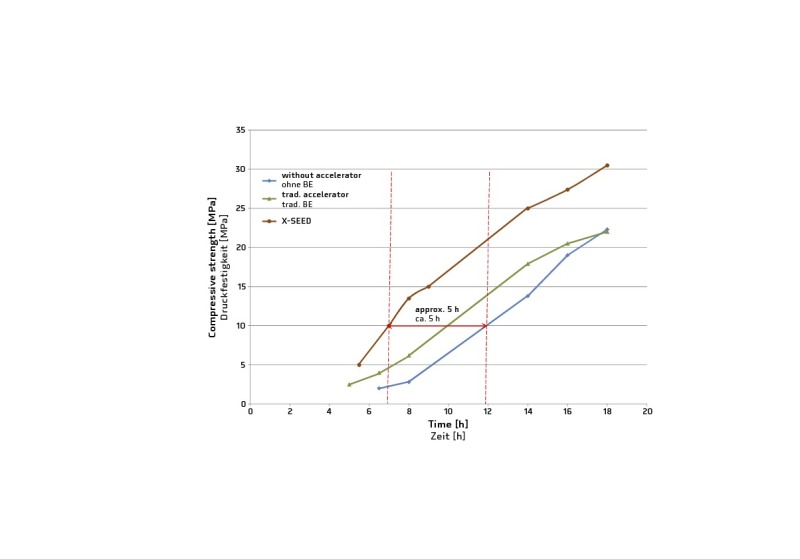

Development of concrete compressive strength (350kg of CEM I 52.5 R) at 10°C with and without hardening accelerator

Photos (3): BASF

Photo: BASF

In Germany, hardening accelerators have been largely neglected to date, particularly because a corrosive effect on the reinforcing steel could not be excluded. It appears appropriate, however, to revisit these agents as a result of the introduction of the Crystal Speed Hardening concept and the availability of suspensions based on nanoscale C-S-H phases.

Mixing the concrete, transporting it to the job site, pouring it into the formwork, flicking a switch, stripping the formwork – and that’s it: Generations of researchers and concrete technologists have dreamt of this scenario. The introduction of self-compacting concrete has made it a routine at least with respect to the “pouring into the mold” part without shaking and vibration. Yet, unfortunately, it is still not possible to just “flick the switch”. Concrete producers have to either wait until the concrete itself has reached a sufficient strength to be demolded or take appropriate measures...
