Concrete construction of modular design
(11) PH12017500255 (A1)

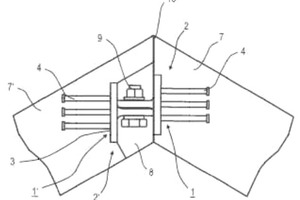

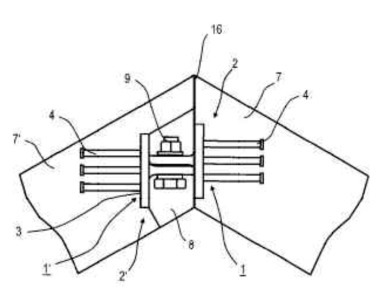

(57) The invention relates to a concrete construction of modular design, comprising at least two upright precast concrete wall elements (7, 7‘,..., 7m) which are arranged next to one another and, where appropriate, above one another and have two narrow sides, an upper and a lower side and a front and a rear side, wherein a first honeycomb support (1) is anchored in one of the narrow sides and the opposite narrow side has a recess or depression (8) in which a further honeycomb support (1‘) is anchored in such a way that, when mounting the narrow sides of the two precast concrete wall elements (7, 7‘), the two honeycomb supports (1, 1‘) can be connected by connecting means (9) with the formation of the vertical joint (16).
(71) DROSSLER GMBH UMWELTTECHNIK [DE] ± (DROSSLER GMBH UMWELTTECHNIK)
(73) KEINDORF CHRISTIAN [DE]; WAGNER DIRK [DE]; LENZING PETER [DE]; STAHL MICHAEL [DE] ± (KEINDORF, Christian, ; WAGNER, Dirk, ; LENZING, Peter, ; STAHL, Michael)
