Contraction joint installer for concrete slabs

(10) US 2014/0205378 Al

(43) Jul. 24, 2014

(71) Harvey Hilbert Haynes, Oakland, CA (US)

(22) Jan. 17, 2014

(57) An apparatus and method to install contraction joints in concrete slabs. The method uses a device, which inserts a strip of plastic or paper tape into freshly laced concrete, as the device is driven across a concrete slab. The tape is folded immediately prior to being inserted into freshly placed concrete, and functions to weaken the slab at the contraction joint location for the purpose of causing a crack to form in the slab. Plastic tape can be used, which functions as a moisture vapor...

Related articles:

Issue 12/2020

Load transfer joint for concrete slabs

(10) WO 2020/188332 Al (22) 20.09.2019 (43) 24.09.2020 (57) The present invention belongs to the field of construction of, or surfaces for, roads and sports grounds, and machines or auxiliary tools...

more

Issue 02/2016 Experimental investigations, applications and recommendations

“Construction of slab-column-connections in semi-precast slabs”

Semi-precast slabs become more and more important as flat slabs due to the high degree of prefabrication. Their structural design is important in terms of safety owing to the high shear stress and...

more

Issue 08/2017

Lattice girder floor slabs – tested application as a point-supported slab

To verify the load-bearing capacity of buildings or structural components, the planning engineer uses engineering models. These are secured in particular in the case of construction with reinforced...

more

Issue 01/2024

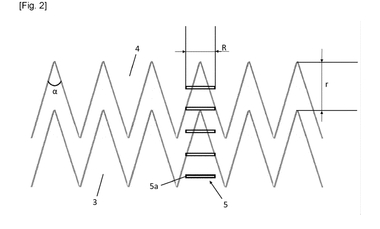

Expansion joint between two concrete slabs adjusted for passage of automatically guided vehicles
