Load transfer joint for concrete slabs
(10) WO 2020/188332 Al
(22) 20.09.2019
(43) 24.09.2020

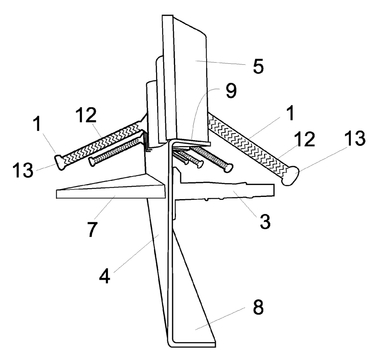

(57) The present invention belongs to the field of construction of, or surfaces for, roads and sports grounds, and machines or auxiliary tools for construction or repair, specifically to details of paving or the arrangement or construction of joints, and packing for joints in metal packing for concrete paving. The invention relates to a metal joint for load transfer between concrete slabs, with concrete-pouring grooves that allow a uniform distribution of concrete between each slab to be joined, which prevents the edges of the expansion joints of the slabs from being damaged by the wheels of forklift trucks, lorries and traffic in general, moving over the slab. The joint allows load to be transferred between the concrete slabs by means of plastic sheaths and metal plates that ensure faster and perfectly aligned load transfer in constmction joints.
(71) COMERCIALIZADORA DE PRODUCTOS PARA PISOS LTDA, COPROPISOS LTDA [CO/CO]
