Steel concrete beam
(11) RU 2 627 810 C1
(22) 19.05.2016
(45) 11.08.2017

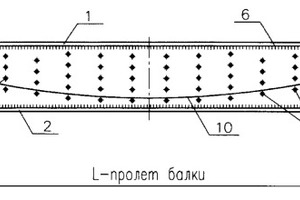

(57) Field: construction. Substance: steel concrete beam comprising the upper and lower belts, the wall and the concrete located in a closed loop in the upper part of the beam section, has a closed loop for the concrete location. The closed loop is formed by the upper belt and the wall consisting of two sheets bent outwards in the upper part of the beam in accordance with the diagram of normal compressive stresses in the cross sections of the beam. The upper edges of the wall sheets are spaced in the horizontal plane and form along the beam...
