Bowl-shaped device for supporting a liftbold provided with a head in a concrete product
(10) EP3804932A2
(22) 21.08.2020
(43) 14.04.2021

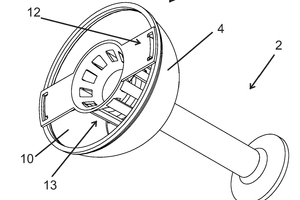

(57) Described is a cup device (1) for supporting a headed lifting stud (2) in a concrete product (3). The cup device (1) comprises a cup member (4) configured to be cast into the concrete product (3) so that an inner surface (5) of an open top space (6) of the cup member (4) forms a part of an outer surface (7) of the concrete product (3), and a detachably attachable support member (8) configured for keeping the headed lifting stud (2) in position with respect to the inner surface (5). The detachably attachable support member (8) is detachably attachable to the cup member (4) by means of first connection means (12) and detachably attachable to the headed lifting stud (2) by means of second connection means (13). The detachably attachable support member (8) covers the open top space (6) only partly.
(71) Peikko Group Oy, FI
