Joint member for precast concrete wall buried pipe and using method thereof, joint structure precast concrete wall buried pipe and precast ...

(10) JP2021165518

(22) 09.06.2020

(43) 14.10.2021

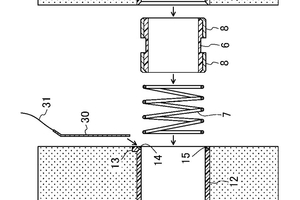

(57) To provide a joint member for a precast concrete wall buried pipe which makes it possible to easily connect the buried pipes using a core even if adjacent precast concrete walls are connected by dropping.solution: A core 6 connecting connection opening ends 12, 22‘ for buried pipes 4, 4‘ of first and second precast concrete walls 2, 2‘ is press-fitted into a first buried pipe connecting part 10 into which a compression coil spring 7 is inserted; with a pull-out prevention member 30 engaged with insertion holes 14 and 15 to prevent the core 6 from coming off, a pair of precast concrete walls 2, 2‘ are lined up by dropping; the pull-out prevention member 30 is pulled out from the insertion holes 14 and 15 by pulling a tension member 31; the core 6 urged by the compression coil spring 7 connects the first connection opening end 12 and the second connection opening end 22; and thereby mortar fills between a joint between the first and second precast concrete walls 2, 2‘ and the outer peripheral surface of the core 6.

(71) Kurimoto Ltd.; JFE Engineering Corp.; Kcon KK
