Module for use in preparing a prefabricated structure, method for manufacturing same and transport frame

(10) WO 2022/170430 A1

(22) 10.02.2022

(43) 18.08.2022

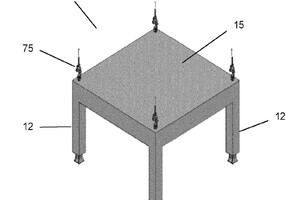

(57) The present invention provides a reinforced concrete module for use in preparing a prefabricated structure comprising a horizontal slab, four corner columns, perimeter beams extending downwardly from a respective longitudinal and transversal edges of the horizontal slab and extending between and connected to adjacent columns; at least two transverse ribs located on an underside of the horizontal slab and extending between two opposing perimeter beams, wherein the module is fabricated as a unitary body. Also provided is a method for fabricating the module, as well as a transport frame configured to support a module on a transport vehicle.

(71) Lodestar Structures Inc. [CA/CA]; 1645 Sydenham Road, Kingston, Ontario K7L 4V4 (CA).

(84) ARIPO (BW, GH, GM, KE, LR, LS, MW, MZ, NA, RW, SD, SL, ST, SZ, TZ,UG, ZM, ZW), Eurasian (AM, AZ, BY, KG, KZ, RU, TJ, TM), European (AL, AT, BE, EG, CH, CY, CZ, DE, DK, EE, ES, FI, FR, GB, GR, HR, HU, IE, IS, IT, LT, LU, LV, MC, MK, MT, NL, NO, PL, PT, RO, RS, SE, SI, SK, SM, TR), OAPI (BF, BJ, CF, CG, CI, CM, GA, GN, GQ, GW, KM, ML, MR, NE, SK, TD, TG).
