Prefabricated concrete bay window forming
device

(10) CN114905612

(22) 11.06.2022

(43) 16.08.2022

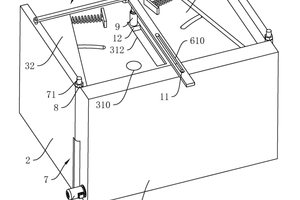

(57) The invention relates to a precast concrete bay window forming device, and relates to the technical field of bay windows. The mounting plate is perpendicular to the ground, the cover plate is parallel to the ground, the two baffles abut against the wall face, the two baffles are symmetrical with the central axis of the mounting plate as the axis, one ends of the baffles are connected with the end of the mounting plate, one side of the cover plate is connected with the mounting plate, the adjacent side of the cover plate is connected with the side walls of the baffles, and a pouring hole is formed in the cover plate in a penetrating mode. The cover plate is connected with the mounting plate through a connecting mechanism, the connecting mechanism comprises a connecting assembly and a driving assembly, the driving assembly is connected with the mounting plate, the connecting assembly is connected with the cover plate, and the driving assembly drives the connecting assembly to rotate through a transmission bevel gear, so that the cover plate moves in the direction close to or away from the ground. The die has the effect that the die is suitable for bay windows of different sizes and shapes.

(71) Nanjing Xupu Building Material Technology Co., Ltd.
