Prefabricated reinforced concrete beam-column connecting structure and construction method thereof
(10) US2024159038A1
(22) 07.11.2023
(43) 16.05.2024

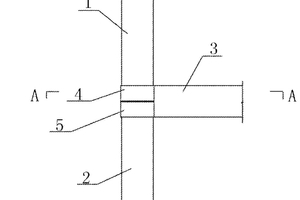

(57) A prefabricated reinforced concrete beam-column connecting structure and a construction method thereof are provided. The prefabricated reinforced concrete beam-column connecting structure includes an upper prefabricated column, a lower prefabricated column, a prefabricated beam, an upper column transfer member, a lower column transfer member, and a connecting slot of beam main reinforcement. The lower column transfer member is sleeved on an upper end portion of the lower prefabricated column. A first horizontal load transfer plate is arranged in the lower column transfer member. An upper end portion of a lower column main reinforcement is anchored at a top of the first horizontal load transfer plate. The upper column transfer member is sleeved on a lower end portion of the upper prefabricated column. A second horizontal load transfer plate is arranged in the upper column transfer member.
(71) Hainan University, CN
