Prefabricated room module, building and construction method

(10) WO2025001340A1

(22) 21.03.2024

(43) 02.01.2025

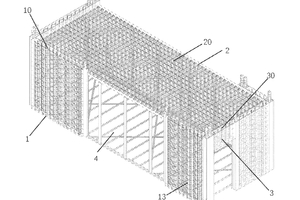

(57) Provided in the present invention are a prefabricated room module, a building and a construction method. The prefabricated room module comprises a shear wall body and a top plate body, wherein the shear wall body has a wall cavity configured for cast-in-place concrete, and a shear wall is formed after concrete is cast in the wall cavity; the top plate body has a casting area for cast-in-place concrete, and a top plate is formed after concrete is cast in the casting area; and the shear wall body is fixedly connected to the top plate body. According to the prefabricated room module, the building and the construction method provided by the embodiments of the present invention, prefabricated portions of a shear wall and a top plate are extracted in a modular manner and are assembled in a factory, thereby forming a standard module self-stressed system; thus, only hoisting and concrete casting works on the module are required at a construction site, and the hoisting of all or most of the small components, the erection operations of scaffolds and construction supports, and a large amount of welding and bolting operations can be avoided.

(71) China Construction Science & Technology Group Co., Ltd., CN
