Finished concrete products as alternative to granite [video]

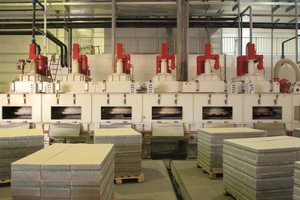

The SR paver grinding machine processes the surface of the concrete products by means of milling, smoothing, and grinding tools Figure: BFT International
The SR paver grinding machine processes the surface of the concrete products by means of milling, smoothing, and grinding tools
Figure: BFT International

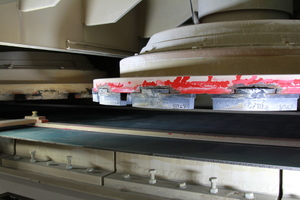

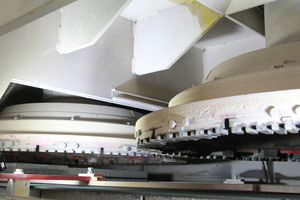

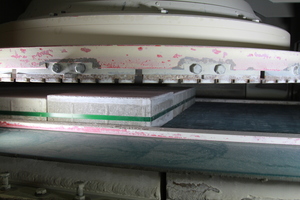

Six plug-in universal mounting plates in total are installed in the SR paver grinding machine, they are fitted with different proc-essing tools – with diamond milling segments (left), smoothing segments (center), and grinding segments (right), for example Figure: BFT International
Six plug-in universal mounting plates in total are installed in the SR paver grinding machine, they are fitted with different proc-essing tools – with diamond milling segments (left), smoothing segments (center), and grinding segments (right), for example
Figure: BFT International
Figure: BFT International
Figure: BFT International
Figure: BFT International
Figure: BFT International

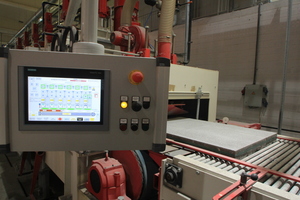

The control panel with built-in touch screen with visualization is mounted to a cantilever arm at the operating side of the grinding machine Figure: BFT International
The control panel with built-in touch screen with visualization is mounted to a cantilever arm at the operating side of the grinding machine
Figure: BFT International

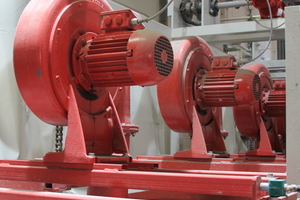

Soon after the blocks or slabs have been calibrated and their surfaces have been treated, a total of ten high-performance ventilators are drying the concrete products from above and from below Figure: BFT International
Soon after the blocks or slabs have been calibrated and their surfaces have been treated, a total of ten high-performance ventilators are drying the concrete products from above and from below
Figure: BFT International

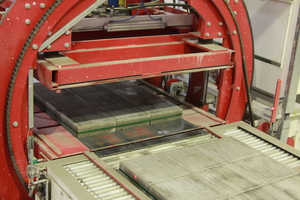

A fully-automated drum turning device each is arranged upstream and downstream the calibrating machine; this device turns the slabs or block layers by 180 degrees for the next processing step Figure: BFT International
A fully-automated drum turning device each is arranged upstream and downstream the calibrating machine; this device turns the slabs or block layers by 180 degrees for the next processing step
Figure: BFT International

Thanks to a new circulation system of SR-Schindler, Fabrika Gotika will mill, smooth, grind, blast, curl, and coat concrete products in the future. The new products with high quality are above all meant to wrest market shares from granite paving traditionally widespread in Moscow and its environs.

 Business is running excellently at Fabrika Gotika. For a short time, the third high-performance block machine, supplied by the German machine and equipment manufacturer Hess which is part of Topwerk Group, has been producing in three-shift operation, a fourth one is being installed right now. And the specialist in concrete products is investing in the expansion of the finishing line yet again.

Currently, a new finishing line has been commissioned in a new production hall of about 24 x 100 m which was especially built for this purpose in the suburb of Novaya Skhodnya situated about 40 km north...
