Mold for producing concrete tubes
(11) EP 3 098 045 A1
(22) 27.05.2015
(43) 30.11.2016 Bulletin 2016/48

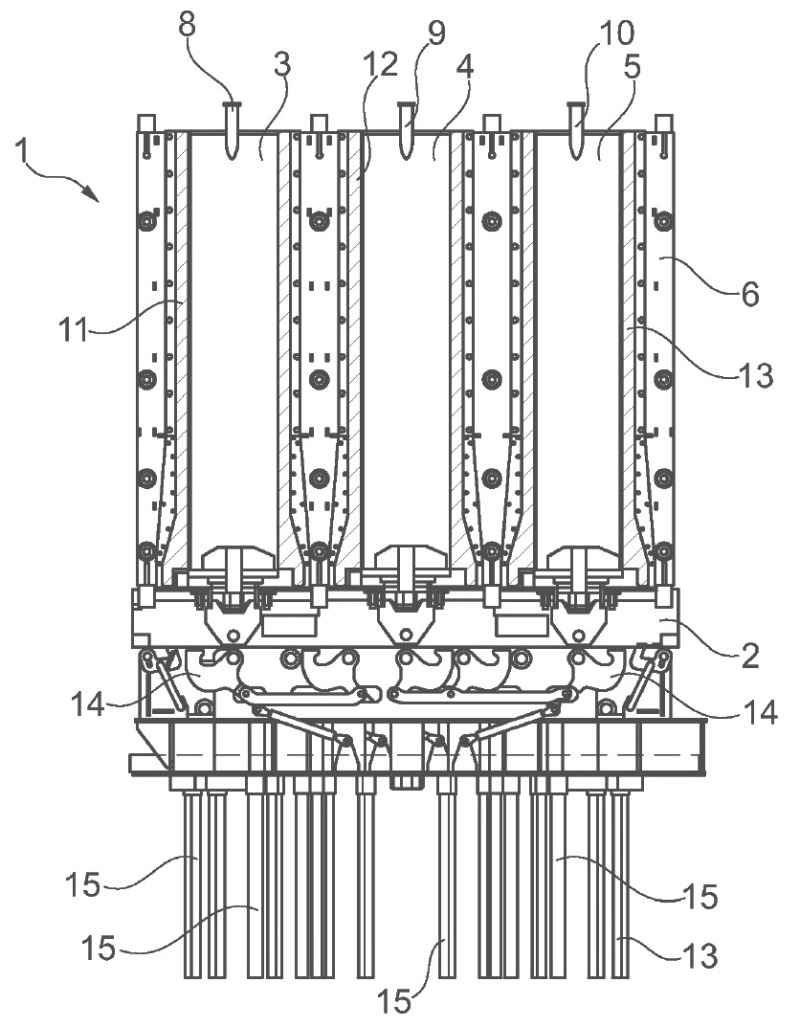

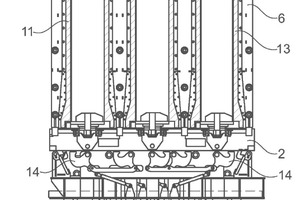

(57) The invention relates to a mold (1) for producing concrete tubes, which mold (1) comprises:
a base frame (2) with a support surface;
at least one elongate core (3) arranged to the base frame (2) and perpendicular to the support surface;
one partitioned shell (6, 7) arranged around the at least one elongated core (3), which one shell (6, 7) is detachable arranged to the base frame (2); and
at least one flexible joint arranged between each elongate core (3) and the base frame (2) to allow tilting of the elongate core relative...
