Prefabricated concrete surface foundation system for photovoltaic and thermosolar plants and method for the implementation thereof
(10) AU2014404071 (A1)
(22)
(43)

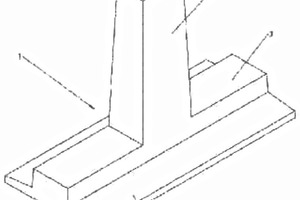

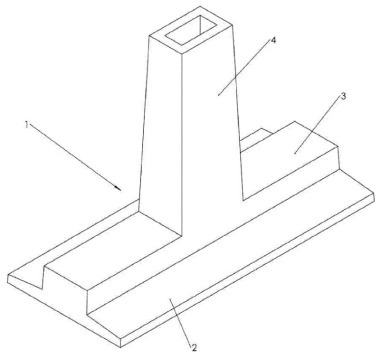

(57) Foundation system for the implementation of thermosolar and photovoltaic plants that comprises a component (1) made from reinforced or prestressed prefabricated concrete constituted by a lower slab (2), a longitudinal central rib (3) in the top part and comprising a pillar (4)ti that emerges from the top part of the central rib. Method for implementing said foundation that comprises the phases: prefabrication (13) of a panel (1) of reinforced or prestressed concrete, the laying-out (14) of a bed of sand (12) over a surface, placing (15) the component (1) on said bed of sand (12), filling (16) with granular material (11) over the lower slab (2) of the panel (1) up to the upper reference mark on the pillar (4), placing (17) a supporting structure (9) inside the pillar (4), wedging (18) of the supporting structure, and filling (19) of the existing hollow using mortar.
(71) ICONKRETE 2012 S L + (lconkrete 2012, S.L)
