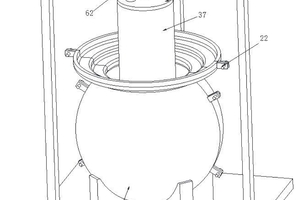

Concrete spherical roadblock manufacturing device

(10) CN117944151

(22) 27.03.2024

(43) 30.04.2024

(57) The invention discloses a concrete spherical roadblock manufacturing device in the technical field of roadblock production. The concrete spherical roadblock manufacturing device comprises an outer mold, and the outer mold is attached to the outline of the outer wall of a spherical roadblock; the inner mold mechanism is used for being matched with the outer mold to form a cavity in a spherical roadblock shape; the supporting mechanism is used for supporting and fixing the outer mold and the inner mold mechanism; according to the concrete spherical roadblock machining device, the inner layer and the outer layer of the concrete spherical roadblock are machined step by step, the concrete spherical roadblock can be made of two different materials, and then the manufacturing cost of the spherical roadblock is reduced; the spherical roadblock shell is hollow, so that the weight of the spherical roadblock shell is low, the spherical roadblock shell can be directly polished and ground in the machining process, and the spherical roadblock inner core is filled after the spherical roadblock shell is polished and ground.

(71) Dezhou Xuancai Buidling Material Technology Co. Ltd., CN

x

Related articles:

Issue 12/2023

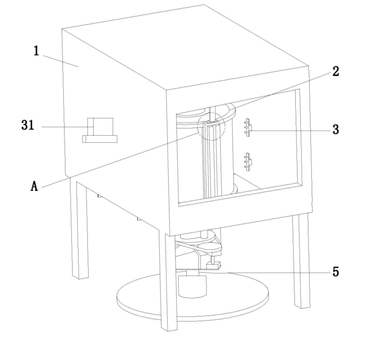

Precast concrete component demolding and forming method

(10) CN115229962 (22) 05.08.2022 (43) 25.10.2022 (57) The invention relates to the technical field of prefabricated part forming and demolding, in particular to a concrete prefabricated part demolding...

more
Issue 11/2023

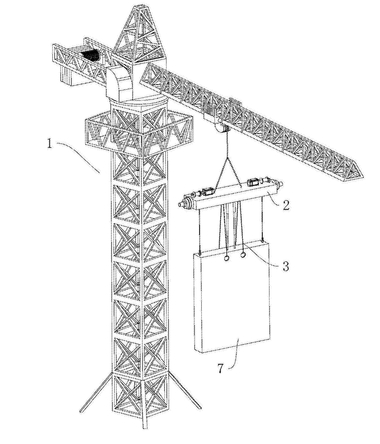

Lifting device for prefabricated concrete outer wallboard and lifting method of lifting device
