Fully Automatic Lattice Girder Welding Machines by Eurobend

The range of Eurobend GmbH includes sustainable solutions and an extensive range of automatic mesh welding and reinforcing steel processing machines for all types of precast concrete applications. Special solutions for the production of meshes, wire spacers, lattice girders and reinforcement systems for the precast industry are offered and are used successfully in leading precast plants worldwide.

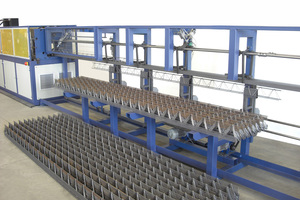

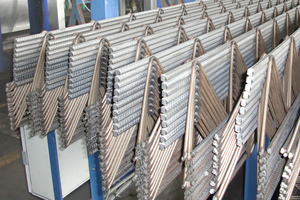

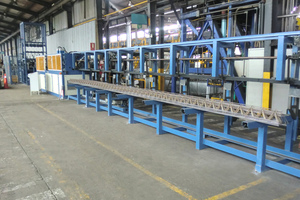

The “PL-TRIS” Series of Lattice Girder welding lines can produce most types and sizes of Lattice Girders and offer reliable and cost-effective production. Different models are available for both the economic and high output production of Lattice Girders.

Powered de-coiling stations with wire tension sensors for the line and diagonal wires or wire loop buffer systems equipped with anti-twist modules, depending on the machine type, ensure that the wires are fed evenly and precisely.

Depending on the model, the wire straightening system uses roller or rotor straightening technology with hyperbolic rollers. This ensures the production of high-quality lattice girders.

Accurate and consistent

operation

A continuous bending system, for double and quad step lines, with retractable bending pins for the two diagonal wires, ensures accurate and consistent operation.

Flexible welding heads with electrically driven height adjustment for the production of various lattice girder sizes. Hydraulic clamping units, mounted on a servo-motor driven carrier, ensure accurate feeding of wires and Lattice Girders. High-speed cutting operation ensures continuous lattice girder production.

More features:

Fully automatic, synchronized stacking and batch removal modules are available;

User friendly software, requires no programming skills;

One operator is only required to supervise the production process and remove the automatically produced Lattice Girders;

Software includes fault detection and supervision of all machine operations for efficient and accurate production;

Remote access via an Internet connection for troubleshooting and routine maintenance.
