Method and apparatus for connecting precast concrete elements

(10) US 2023/0044480A1

(22) 23.12.2020

(43) 09.02.2023

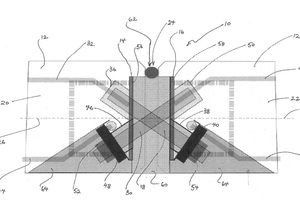

(57) An apparatus for connecting precast elements, wherein the apparatus includes a first part adapted for being cast into a first one of the precast elements, and the apparatus further includes a second part adapted for being cast into a second one of the precast elements, wherein the first part and the second part are arranged to receive a fastener for fastening the second precast element relative to the first precast element with the fastener crossing a joint between the precast elements at an angle to the joint.

(71) Structural Connections IP Pty Ltd, Brisbane [AU]
