Pouring and shaping device for concrete prefabricated slab production
(10) CN117754709
(22) 12.12.2023
(43) 26.03.2024

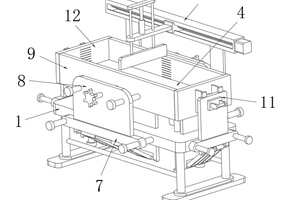

(57) The invention relates to the technical field of concrete precast slab manufacturing, and discloses a concrete precast slab production-based pouring shaping device which comprises a base, two groups of guide rods are slidably connected into the base, a top plate is fixedly connected between the top ends of the two groups of guide rods, and a base plate is arranged at the top of the top plate; two positioning blocks are fixedly connected to the bottom of the base plate, and two positioning holes used for allowing the positioning blocks to be inserted therein are formed in the top plate. According to the pouring shaping device based on concrete precast slab production, through the arrangement of the driving piece, a top plate and a base plate can be driven to be upwards driven, then an initially-set precast slab can be upwards jacked up, demolding work of the precast slab is formed, two side face plates and two end face plates can be synchronously driven to be unfolded, and the demolding effect of the precast slab is improved; the problem that in the prior art, when a prefabricated slab is demoulded, the whole mould cavity needs to be detached, and then the prefabricated slab can be demoulded is solved.
(71) Jiaxing Shangjian Shidong Concrete Co., Ltd., CN
