Prefabricated high-strength steel fiber reinforced concrete square pile

(10) CN114016497A

(22) 11.11.2021

(43) 08.02.2022

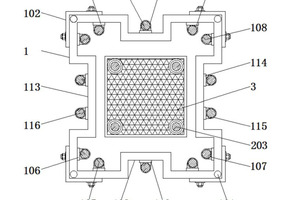

(57) A prefabricated high-strength steel fiber concrete square pile comprises a prefabricated steel frame, mounting holes A are formed in the four corners of the front end face of the prefabricated steel frame, a prefabricated baffle is mounted on the front end face of the prefabricated steel frame, and connecting blocks are mounted on the upper portion and the lower portion of the rear end face of the prefabricated baffle correspondingly, and prefabricated steel bars E are installed at one ends of the connecting blocks, and steel fiber assemblies are installed on the outer walls of the prefabricated steel bars E. The prefabricated steel frame is reasonable in structure, by arranging the steel fiber assemblies, after multiple sets of prefabricated steel bars on the prefabricated steel frame are connected in an inserted mode, the prefabricated baffles are used for blocking operation, then the steel fiber assemblies are installed on the prefabricated steel bars, that is, the high-strength steel fibers can be prefabricated and installed on site, meanwhile, the structure is simple, installation is convenient, a large number of tedious steps are omitted, and the working efficiency is effectively improved.

(71) Jiangsu Hongqiang new building mat Co. Ltd
