Intelligent production pallets:
data acquisition, monitoring, tracing

Photo: Peri GmbH

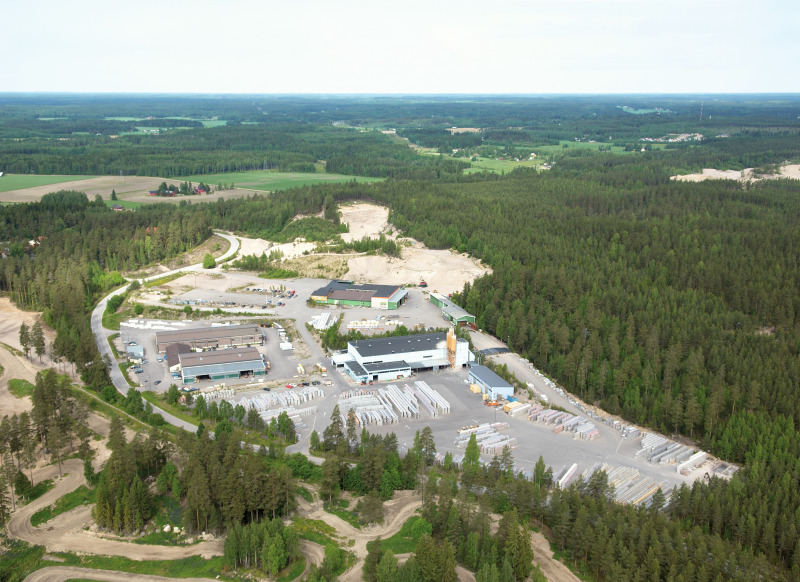

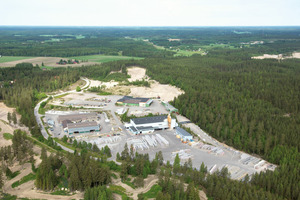

The production facility of Lemminkäinen in Orimattila, Finland, is the first plant of the corporate group to install the innovative Peri Pave IT technology

Photo: Peri GmbH

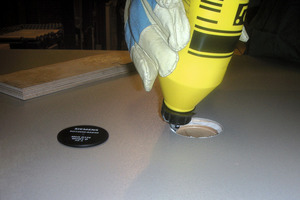

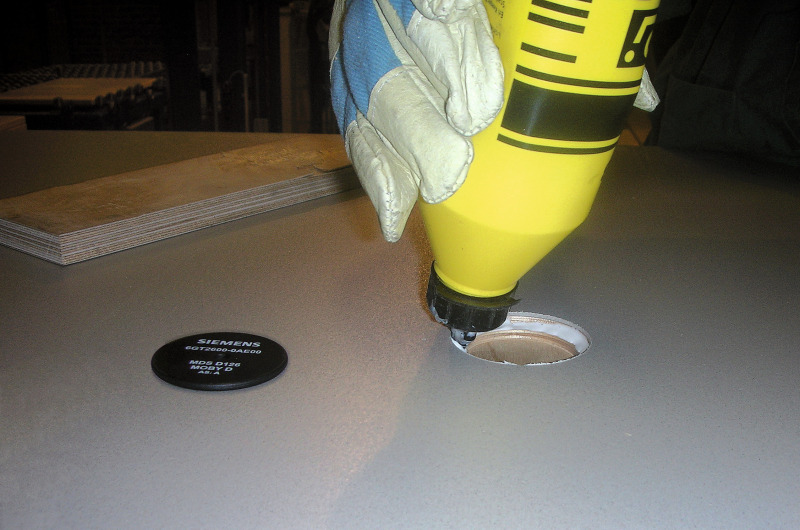

Peri Pave production pallets can be fitted with RFID chips by the manufacturer. Alternatively, the chips can also be installed in pallets already in service without any problem

Photo: Peri GmbH

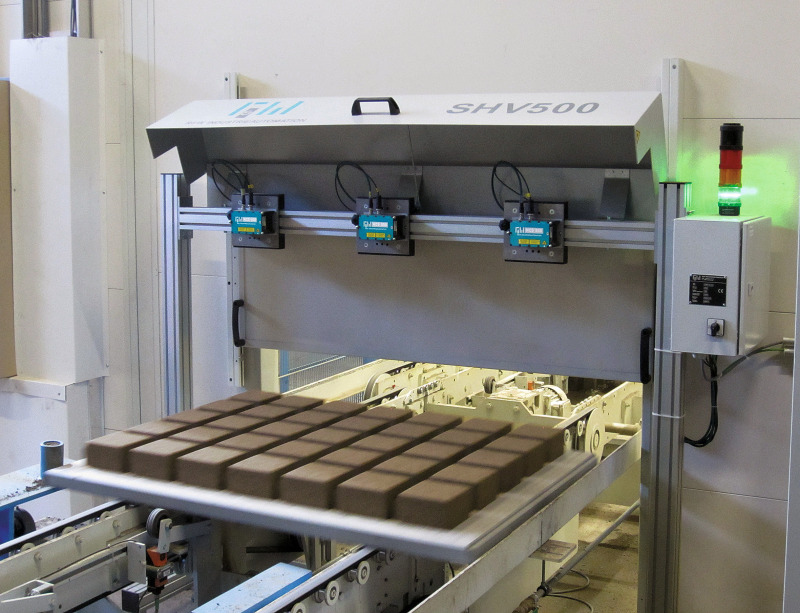

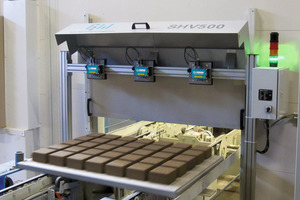

SHV500 height measuring enables non-contact measurement of the products using remote laser distance sensors. The information is stored in the database, and allocated by the RFID chip to the respective production board

Photo: Peri GmbH

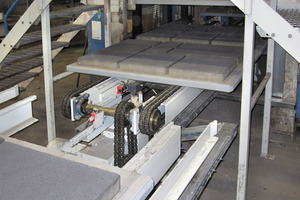

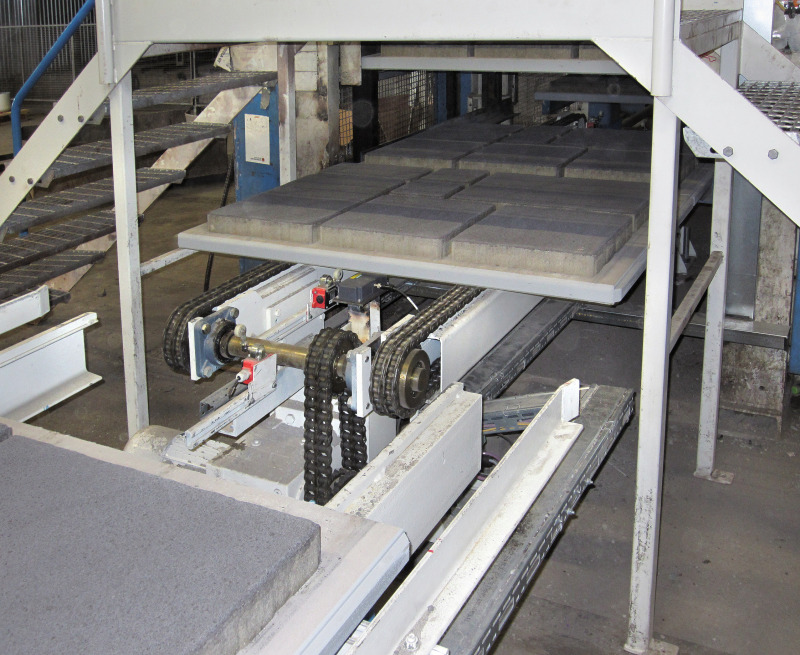

One of the two readers that were integrated in production cycle in the course of the conversion of the plant is located behind the lowerator

Photo: Peri GmbH

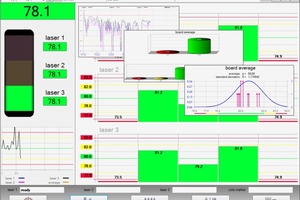

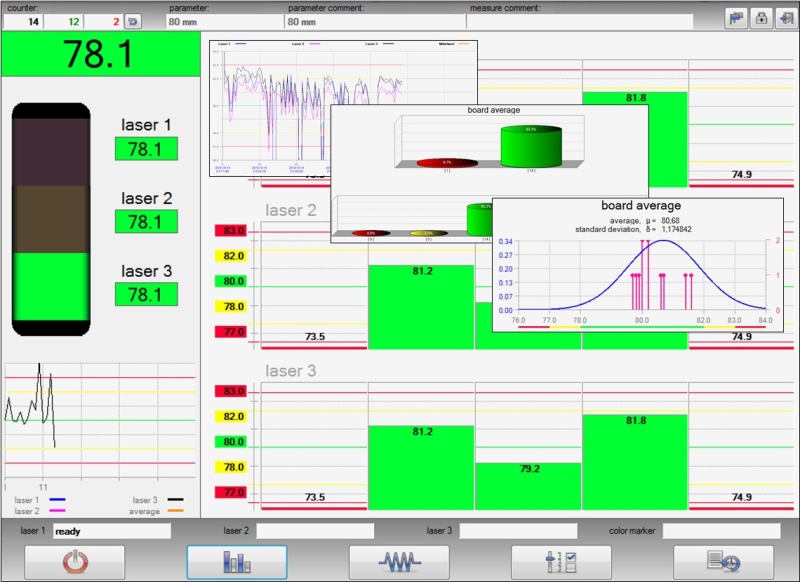

The data obtained from height measurement are graphically displayed for every pallet. Apart from the display of the measured date, statistic evaluations can also be carried out

Photo: Peri GmbH

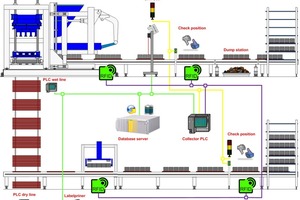

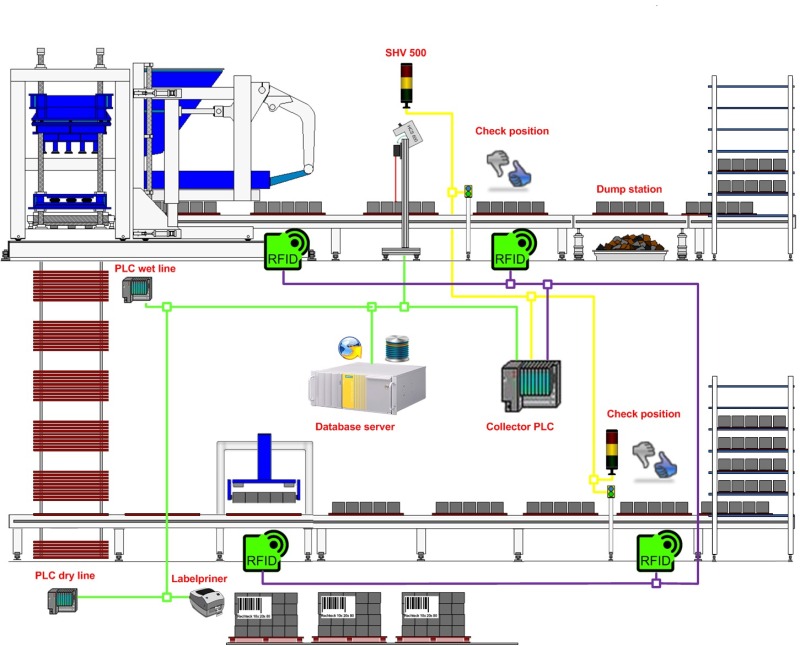

Possible positions of the reader system and survey of the networking on the wet and dry side of a concrete block plant

Photo: Peri GmbH

Peri Pave production pallets with built-in RFID chips can be unmistakably identified. Production data and quality parameters of the concrete products manufactured can be distinctly assigned to the pallets. A manufacturer in Finland recently outfitted its second plant with this technology.

Production pallets are the only elements that pass through every station of a concrete production plant – from the block machine to the packaging unit. Peri made good use of this fact when it developed a quality control system for concrete block production plants. Peri, in collaboration with R & W Industrieautomation GmbH – for many years established in the concrete block industry with systems for block height measuring and control systems – created a technology for a transparent and end-to-end quality management.
