Semi-Submersible Platform

(10) WO2023144425A1

(22) 28.01.2022

(43) 03.08.2023

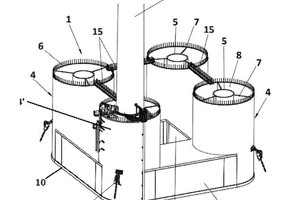

(57) The present invention relates to a semi-submersible platform (1) for maritime applications such as wind power, electrical substations or hydrogen generation plants, wherein the semi-submersible platform (1) comprises a base body (2) made of concrete equipped with internal compartments (3) adapted to house ballast water, and three or more buoyancy columns (4) substantially made of concrete, wherein said columns (4) protrude from an upper face of the base body (2) and are arranged at the vertexes of the base body (2), wherein at least one column (4) is internally equipped with respective concentric rings (5, 6), an inner ring (5) and an outer ring (6), joined together by a plurality of radial walls (7) that define anti-flood compartments (8).

(71) AccionaConstruccion, S.A; Bluenewables, S.L. (ES)
